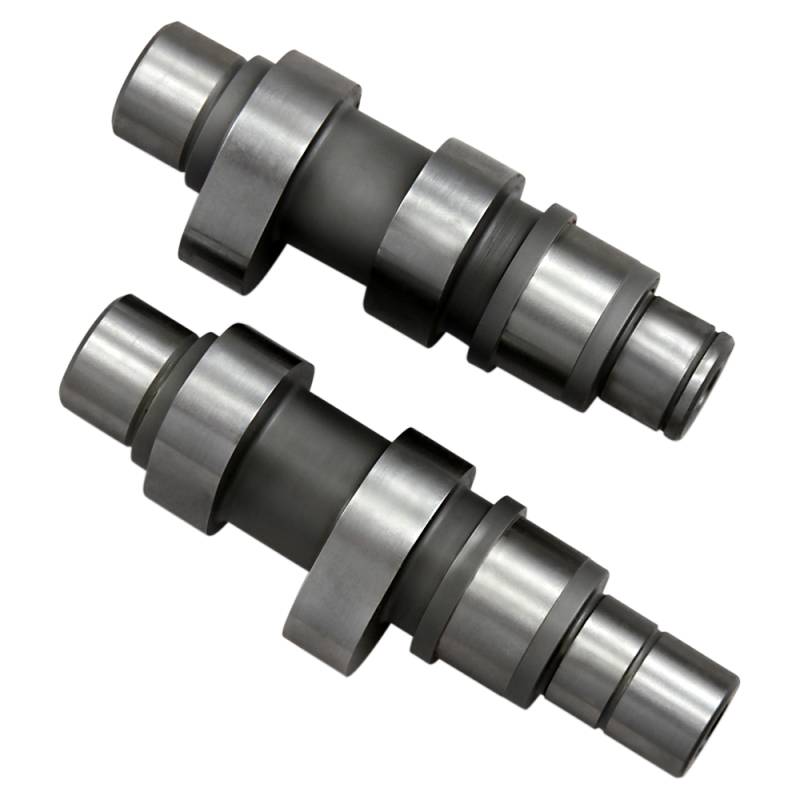

Andrews 26G Gear Drive Camshafts - 288126G

Gear drive uses less engine power to operate and improves valve timing accuracy over stock chain drive camshafts Dynamometer comparisons show gains of 4 horsepower over chain drive camshafts Can be installed on both carbureted and fuel injected models (exc. 2006 Dyna) Bolt-in cam for lower RPM torque, FLT, etc. For two up touring, this cam will add torque and HP at lower and middle speed ranges 1800-5500 RPM NOTE: Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance NOTE: Sold as cams only, inner and outer gear kit and installation kit must be purchased separately

Specifications

Exhaust Lift	0.490"
Exhaust Lobe Centerline	106°
Type	Gear Drive
Exhaust Close	9°
Exhaust Duration	266°
Intake Lobe Centerline	102°
Application	Intake / Exhaust
Intake Duration	226°
Intake Lift at TDC	0.138"
Product Name	Cam Set
Intake Open	11°
Exhaust Lift at TDC	0.120"
Intake Close	35°
Intake Lift	0.490"
Exhaust Open	41°
Grind	26 Series
