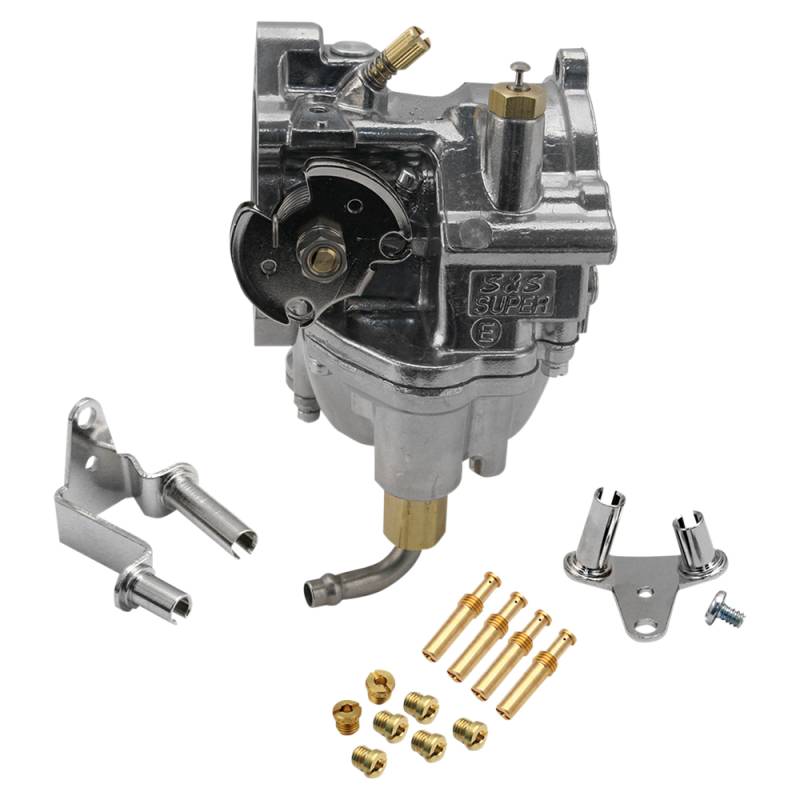

S&S Cycle Super E Carburetor - 1-7/8in. - Natural - 11-0420

11-0420
Not For Sale

Description

S&S Super E & G carburetors require the use of a two-cable, pull open/pull close throttle assembly.
The Super E and G are butterfly type carbs with fully adjustable idle mixture screws and changeable intermediate and main jets. The idle mixture screw is positioned and angled for easy accessibility. Even with five gallon gas tanks, adjustments are not a problem. All Super series carburetors use a special enrichment device instead of a choke for starting. This leaves the bore of the carburetor unobstructed for greater air flow.
The enrichment device on the Super E & G carbs is activated by a variable position lever attached to the air cleaner backplate. By simply adjusting the lever, starting and warm-ups are made easy and foolproof.
The Super E has a 1-7/8 throat at the butterfly and is identified by an E cast into the throttle linkage side of the carb body below the cast in wording S&S SUPER
The Super G has a 2-1/16in. throat at the butterfly and is identified by an G cast into the throttle linkage side of the carb body below the cast in wording S&S SUPER
Throttle spool assembly is designed to accept stock 1981 and later style two-cable pull open-pull closed throttle assemblies so stock throttle cables can be used
Made in USA
Specifications
Base ColorSilver
StyleStandard Bore / Super E
Color/FinishNatural
Product NameCarburetor

Product Series

Application List

MODELYEARS
Buell
M2 Cyclone1997–2002
M2L Cyclone2002
RR10001997–1998
S1 Lightning1996–1998
S1 White Lightning1998
S2 Thunderbolt1995–1996
S2T Thunderbolt1996
S3 Thunderbolt1997–2001
S3T Thunderbolt1997–2002
X1 Lightning1999–2002
X1W White Lightning2002
XB9R Firebolt2002
Harley Davidson
FLFB Electra Glide1966–1969
FLH Electra Glide1970–1978, 1984–1985
FLH Electra Glide
1979-80 engines may be equipped with either o-ring or band style heads. Check before ordering.
1979–1980
FLHB Electra Glide1966–1969
FLHC Electra Glide Classic
1979-80 engines may be equipped with either o-ring or band style heads. Check before ordering.
1979–1980
FLHF1970–1972
FLHFB Electra Glide1966–1969
FLHR Road King1994–2005
FLHRCI Road King Classic1998–2005
FLHRI Road King1996–1997, 2000–2005
FLHRS Road King Custom2004–2005
FLHRSI Road King Custom2004–2005
FLHS Electra Glide Sport
1979-80 engines may be equipped with either o-ring or band style heads. Check before ordering.
1980
FLHS Electra Glide Sport1984, 1987–1993
FLHT Electra Glide Standard1986–1987, 1995–2005
FLHTC Electra Glide Classic1984–2005
FLHTCI Electra Glide Classic1996–2005
FLHTCU Electra Glide Ultra Classic1989–1997
FLHTCUI Electra Glide Ultra Classic1995–2005
FLHTI Electra Glide Standard2003–2005
FLHX Electra Glide Special1984–1985
FLST Heritage Softail1986–1990
FLSTC Heritage Softail Classic1988–2005
FLSTCI Heritage Softail Classic2001–2005
FLSTF Fat Boy1990–2005
FLSTFI Fat Boy2001–2005
FLSTN Heritage Softail Nostalgia1993
FLSTN Heritage Softail Special1994–1996
FLSTN Softail Deluxe2005
FLSTNI Softail Deluxe2005
FLSTS Heritage Springer1997–2003
FLSTSC Softail Springer Classic2005
FLSTSCI Softail Springer Classic2005
FLSTSI Heritage Springer2001–2003
FLT Tour Glide
1979-80 engines may be equipped with either o-ring or band style heads. Check before ordering.
1980
FLTC Tour Glide Classic1984–1991
FLTCU Tour Glide Ultra Classic1989–1995
FLTCUI Tour Glide Ultra Classic1996
FLTR Road Glide1998–2002
FLTRI Road Glide1998–2005
FX Super Glide1971–1978
FXB Sturgis
1979-80 engines may be equipped with either o-ring or band style heads. Check before ordering.
1980
FXD Dyna Super Glide1995–2005
FXDB-D Dyna Glide Daytona1992
FXDB-S Dyna Glide Sturgis1991
FXDC Super Glide Custom1992, 2005
FXDCI Super Glide Custom2005
FXDI Dyna Super Glide2004–2005
FXDL Dyna Low Rider1993–2005
FXDLI Dyna Low Rider2004–2005
FXDS-Conv Dyna Convertible1994–2000
FXDWG Dyna Wide Glide1993–2005
FXDWGI Dyna Wide Glide2004–2005
FXDX Dyna Super Glide Sport1999–2005
FXDXI Dyna Super Glide Sport2004–2005
FXDXT Dyna Super Glide T-Sport2001–2003
FXE Super Glide1974–1978, 1984
FXE Super Glide
1979-80 engines may be equipped with either o-ring or band style heads. Check before ordering.
1979–1980
FXEF Fat Bob
1979-80 engines may be equipped with either o-ring or band style heads. Check before ordering.
1979–1980
FXEF Fat Bob1985
FXLR Low Rider Custom1987–1994
FXR Super Glide II1986–1994
FXRC Low Rider Chrome1985, 1987
FXRD Sport Glide Grand Touring1986
FXRDG Disc Glide1984
FXRS Low Glide1984–1992
FXRS-Conv Low Rider Sport Convertible1990–1993
FXRS-SP Low Rider Sport1986–1993
FXRT Sport Glide1984–1992
FXS Low Rider1977–1978
FXSB Low Rider - Belt1984–1985
FXST Softail Standard1984–1990, 1999–2005
FXSTB Night Train1999–2005
FXSTBI Night Train2001–2005
FXSTC Softail Custom1986–1999
FXSTD Softail Deuce2000–2005
FXSTDI Softail Deuce2001–2005
FXSTI Softail Standard2001–2005
FXSTS Springer Softail1988–2005
FXSTSB Bad Boy1995–1997
FXSTSI Springer Softail2001–2005
FXWG Wide Glide1984–1986
XL1957–1959
XL883 Sportster2004–2006
XL883C Sportster 883 Custom1999–2006
XL883L Sportster 883 Low2005–2006
XL883R Sportster 883 Roadster2002–2003, 2005–2006
XL1200C Sportster 1200 Custom1996–2006
XL1200L Sportster 1200 Low2006
XL1200R Sportster 1200 Roadster2004–2006
XL1200S Sportster 1200 Sport1996–2003
XLC1958
XLCH1958–1979
XLH8831986–2003
XLH883DLX Sportster 883 Deluxe1986–1995
XLH883HUG Sportster 883 Hugger1987–2003
XLH9001958–1971
XLH10001972–1985
XLH11001986–1987
XLH12001988–2003
XLS Roadster1978–1985
XLT1977–1978
XLX 10001983–1985
