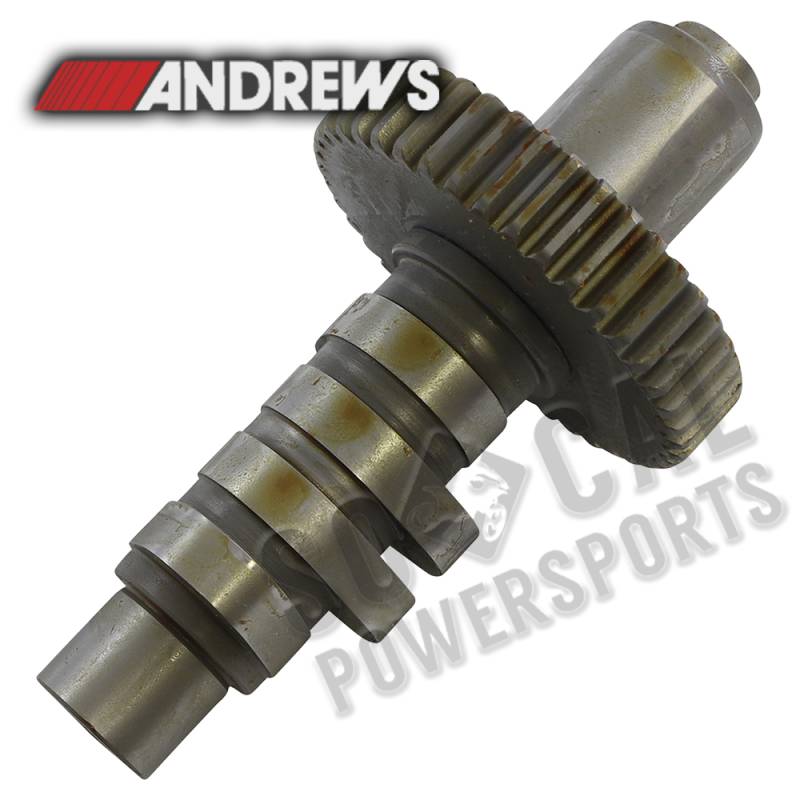

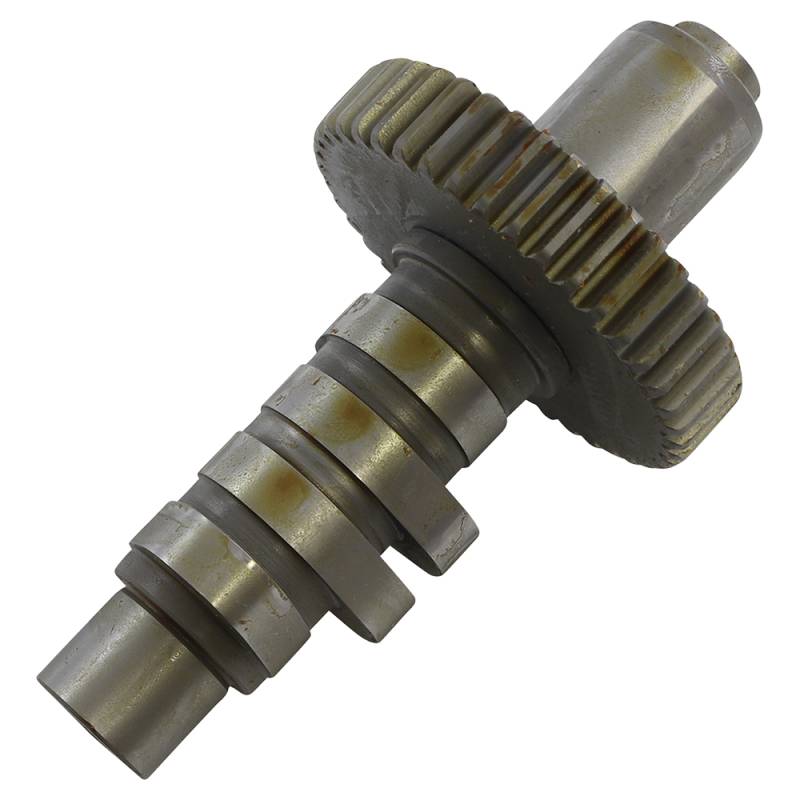

Andrews EV13 Camshaft - 291113

Measurement of cam and pinion gears is especially critical for 90 and later models to verify proper fit. Bolt-in cam for street/touring use has more mid-range and top end power over stock Intake Opening (degrees): 15 Intake Closing (degrees): 31 Exhaust Opening (degrees): 45 Exhaust Closing (degrees): 13 Intake Duration (degrees): 226 Exhaust Duration (degrees): 238 Intake Lift (in): .485 Exhaust Lift (in): .495

Specifications

Exhaust Lift at TDC	0.148"
Grind	EV13
Type	Gear
Exhaust Duration	238°
Intake Open	15°
Intake Duration	226°
Intake Lift at TDC	0.161"
Intake Lift	0.485"
Product Name	Cam
Application	Exhaust / Intake
Exhaust Close	13°
Exhaust Lift	0.495"
Exhaust Lobe Centerline	106°
Intake Close	31°
Intake Lobe Centerline	98°
Exhaust Open	45°
