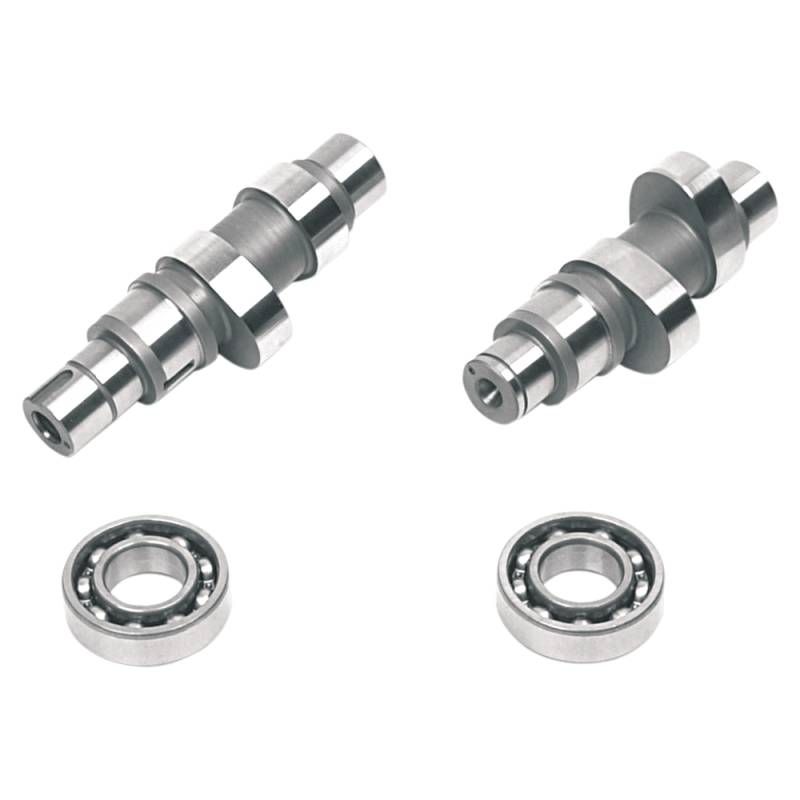

Andrews 59HG Gear Drive Camshafts - 216359G

Gear drive uses less engine power to operate and improves valve timing accuracy over stock chain drive camshafts Dynamometer comparisons show gains of 4 horsepower over chain drive camshafts Can be installed on both carbureted and fuel injected models (exc. 2006 Dyna) Great cam for 95in. motors with 10.00 CR and higher Max torque and HP at mid and upper RPM NOTE: Requires spring spacing NOTE: Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance NOTE: Sold as cams only, inner and outer gear kit and installation kit must be purchased separately NOTE: 59G cams are for highly tuned engines and require the knowledge of an expert engine builder for proper setup and installation.

Specifications

Application	Intake / Exhaust
Exhaust Close	27°
Exhaust Open	63°
Type	Gear Drive
Exhaust Duration	270°
Intake Lift at TDC	0.238"
Intake Open	29°
Exhaust Lift at TDC	0.218"
Grind	59 Series
Intake Close	57°
Product Name	Cam Set
Exhaust Lift	0.590"
Exhaust Lobe Centerline	108°
Intake Duration	266°
Intake Lift	0.590"
Intake Lobe Centerline	104°
