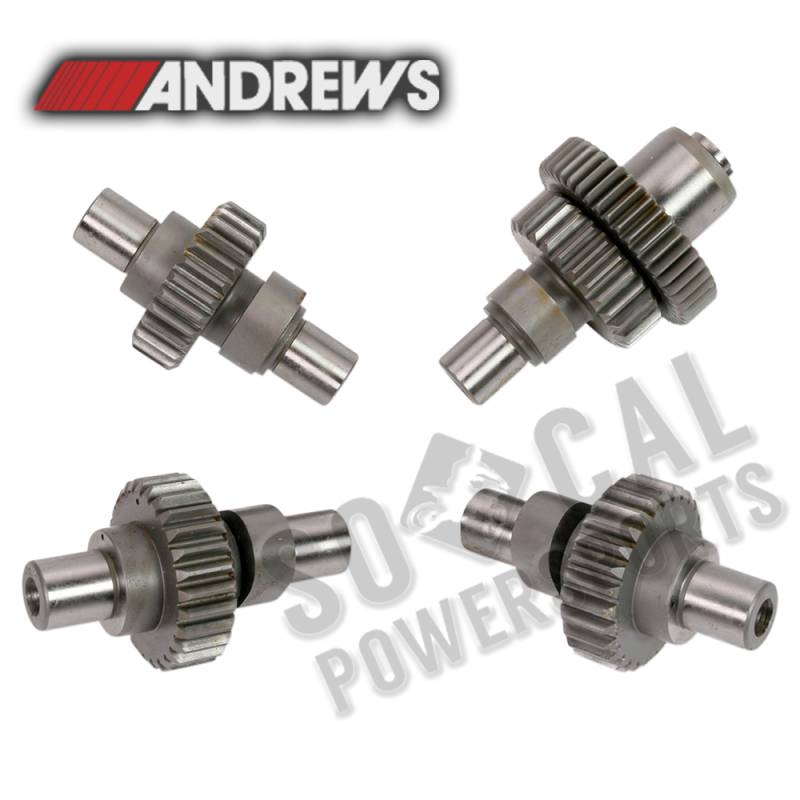

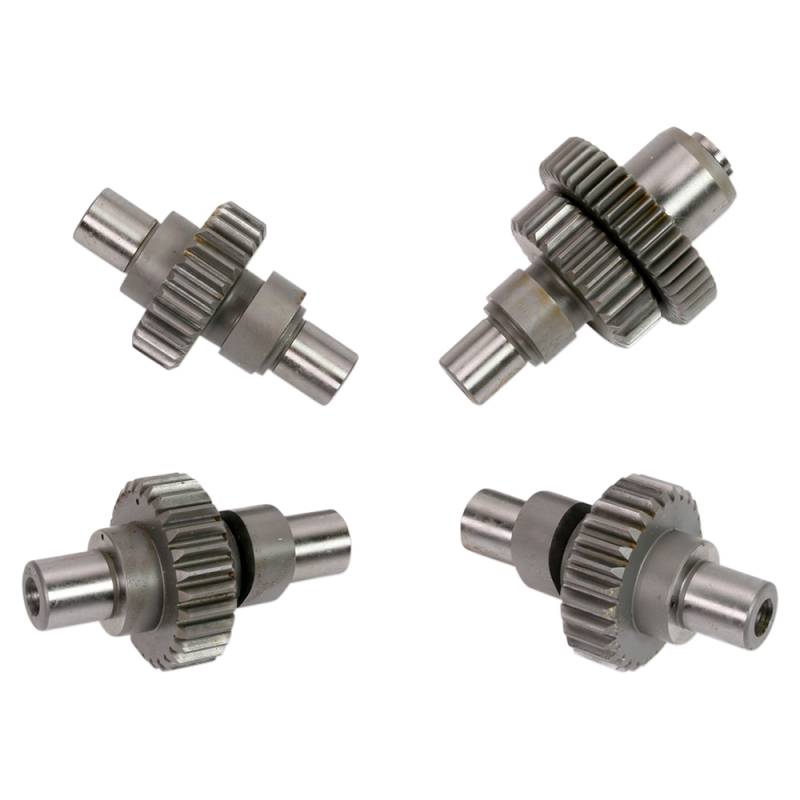

Andrews N2 Camshaft - 298130

298130
Not For Sale

Description

Bolt-in street cams for Evolution engines Useable power to 6000 RPM No valve/valve interference Stock springs and hydraulic lifters recommended Intake Opening (degrees): 22 Intake Closing (degrees): 38 Exhaust Opening (degrees): 46 Exhaust Closing (degrees): 18 Intake Duration (degrees): 240 Exhaust Duration (degrees): 244 Intake Lift (in): .465 Exhaust Lift (in): .440
Specifications
Intake Open22°
Exhaust Lift0.440"
Exhaust Lobe Centerline104°
Exhaust Duration244°
Exhaust Lift at TDC0.155"
Intake Close38°
Intake Lift0.465"
Exhaust Close18°
GrindN2
Intake Duration240°
Intake Lift at TDC0.180"
Intake Lobe Centerline98°
Product NameCam Kit
ApplicationExhaust / Intake
Exhaust Open46°
TypeGear

Product Series

Application List

YearsMakeModelApplicationNotes
2004 - 2008Harley DavidsonXL1200R Sportster 1200 Roadster2004 and up valve to piston clearance should be checked
2016 - 2020Harley DavidsonXL1200CX Roadster2004 and up valve to piston clearance should be checked
2004 - 2019Harley DavidsonXL1200C Sportster 1200 Custom2004 and up valve to piston clearance should be checked
2000 - 2003Harley DavidsonXL1200S Sportster 1200 Sport
2000 - 2003Harley DavidsonXL1200C Sportster 1200 Custom
2006 - 2011Harley DavidsonXL1200L Sportster 1200 Low2004 and up valve to piston clearance should be checked
2002 - 2003Harley DavidsonXL883R Sportster 883 Roadster
2007 - 2007Harley DavidsonXL50 50th Anniversary Sportster2004 and up valve to piston clearance should be checked
2012 - 2016Harley DavidsonXL1200V Seventy-Two2004 and up valve to piston clearance should be checked
2005 - 2010Harley DavidsonXL883L Sportster 883 Low2004 and up valve to piston clearance should be checked
2015 - 2017Harley DavidsonXL1200T SuperLow 1200T2004 and up valve to piston clearance should be checked
2010 - 2020Harley DavidsonXL1200X Forty-Eight2004 and up valve to piston clearance should be checked
2007 - 2012Harley DavidsonXL1200N Sportster 1200 Nightster2004 and up valve to piston clearance should be checked
2018 - 2020Harley DavidsonXL1200NS Iron 12002004 and up valve to piston clearance should be checked
2000 - 2003Harley DavidsonXLH883HUG Sportster 883 Hugger
2018 - 2019Harley DavidsonXL1200XS Forty-Eight Special2004 and up valve to piston clearance should be checked
2000 - 2003Harley DavidsonXL883C Sportster 883 Custom
2004 - 2008Harley DavidsonXL883 Sportster2004 and up valve to piston clearance should be checked
2011 - 2019Harley DavidsonXL883L SuperLow2004 and up valve to piston clearance should be checked
2004 - 2009Harley DavidsonXL883C Sportster 883 Custom2004 and up valve to piston clearance should be checked
2009 - 2020Harley DavidsonXL883N Iron 8832004 and up valve to piston clearance should be checked
2005 - 2007Harley DavidsonXL883R Sportster 883 Roadster2004 and up valve to piston clearance should be checked
2000 - 2001Harley DavidsonXLH1200
2000 - 2003Harley DavidsonXLH883

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
  • Free Ground Shipping (1 - 5 Days)
