Mounting Flange Inside Diameter 2 7/16in. MM 62, Filter Outside Diameter 3 3/4in. MM 96, Filter Length 4in. MM 102, Flange Angle; Length 20deg.; 2in. Flange Type Angled
When selecting one of K&Ns universal round straight air filters, you should consider the following dimensions as they relate to the specification chart:
Mounting Flange Inside Diameter - This is the most critical dimension and should be very close to the diameter of the applications inlet flange. The flange will stretch up to 1/8in. for those in between sizes.
Filter Diameter - This is the overall diameter of the filter. Always use the largest diameter practical to insure maximum filtration.
Filter Length - This dimension is the length of the filter body only, it does not include the flange length. Always use the longest filter practical for maximum filtration.
Flange Angle and/or Length - If no angle is listed in the specifications table, the flange is straight.
Any angle listed is in degrees and can be utilized when space is a problem.
Flange Type - The location of the flange in relation to the O.D. of the filter is sometimes offset to one edge of the filter for more clearance in an application.

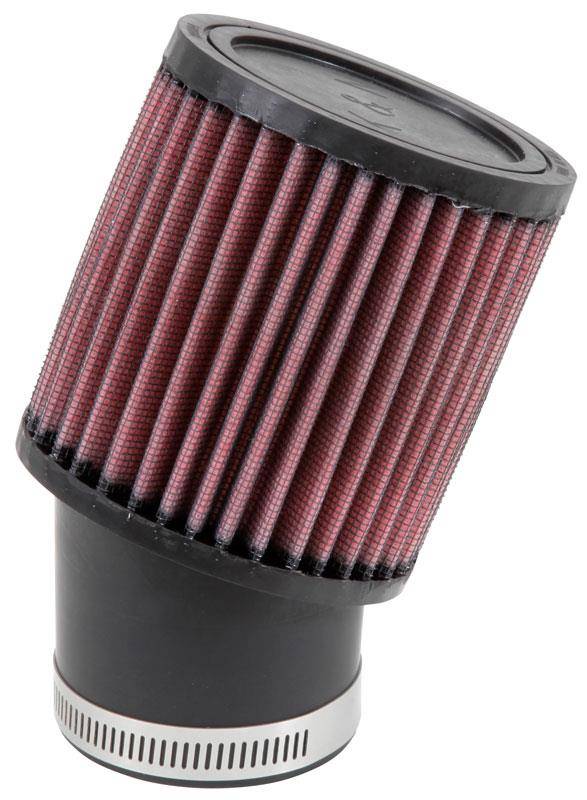

K and N Universal Round Straight Sold Individually
These filters are legal ONLY for racing vehicles. Not applicable, nor intended for use on emission controlled street or highway vehicles
Specifications| Features | Washable |
|---|
| Flange Position | Angled 20° |
|---|
| Inside Diameter | 62,00 mm (2,438") / 2.438" / 62.00 mm |
|---|
| Filter Media Material | Cotton Gauze |
|---|
| Base Color | Red |
|---|
| Color/Finish | Black / Red |
|---|
| Filter Height | 4.00" |
|---|
| Style | Clamp-On |
|---|
| Model | Universal |
|---|
| Filter Shape | Round |
|---|
| Product Name | Air Filter |
|---|
