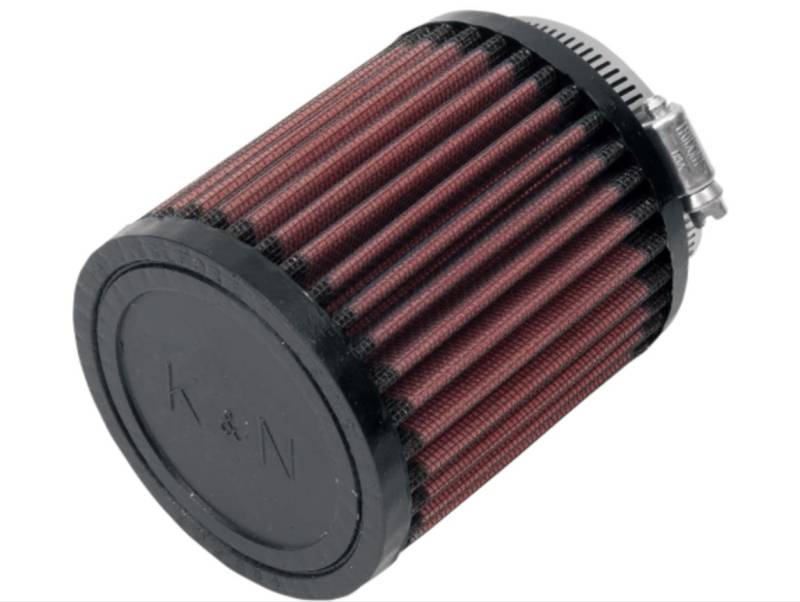

K&N Engineering Universal Round Straight Air Filter - Rubber End Cap - RU-0800

RU-0800
Not For Sale

Description

Mounting Flange Inside Diameter 2 7/16in. MM 62, Filter Outside Diameter 3 1/2in. MM 89, Filter Length 4in. MM 102, Flange Length 5/8in. Flange Type Centered
When selecting one of K&Ns universal round straight air filters, you should consider the following dimensions as they relate to the specification chart:
Mounting Flange Inside Diameter - This is the most critical dimension and should be very close to the diameter of the applications inlet flange. The flange will stretch up to 1/8in. for those in between sizes.
Filter Diameter - This is the overall diameter of the filter. Always use the largest diameter practical to insure maximum filtration.
Filter Length - This dimension is the length of the filter body only, it does not include the flange length. Always use the longest filter practical for maximum filtration.
Flange Angle and/or Length - If no angle is listed in the specifications table, the flange is straight.
Any angle listed is in degrees and can be utilized when space is a problem.
Flange Type - The location of the flange in relation to the O.D. of the filter is sometimes offset to one edge of the filter for more clearance in an application.
K and N Universal Round Straight Sold Individually
These filters are legal ONLY for racing vehicles. Not applicable, nor intended for use on emission controlled street or highway vehicles
Specifications
ModelUniversal
Filter Media MaterialCotton Gauze
Filter ShapeCylinder
Inside Diameter62.00 mm / 2.438" / 62,00 mm (2,438")
FeaturesWashable
Filter Height4.00"
Flange PositionCentered
Color/FinishBlack / Red
StyleClamp-On
Product NameAir Filter
Base ColorRed

Application List

YearsMakeModelNotes
------

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
