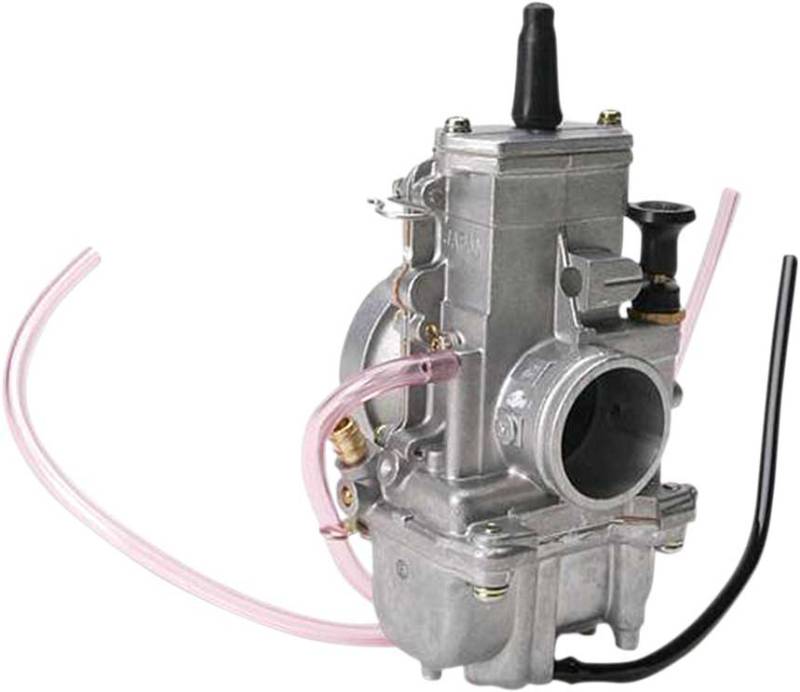

Mikuni TM Series Flat Slide Carburetor (TM34-2) - 34mm - TM34-2

TM34-2
Not For Sale

Description

Type - TM
Carb Size - 34mm
Main Jet - 280
Pilot Jet - 50
Needle Jet - (389)Q-2
Jet Needle - 5FP17
Throttle Valve Cutaway - 4.0
Air Jet - 2.5
Needle Valve - 3.3
Choke Type - Button
TM Series flat side carburetors provide a significant performance improvements over older round slide carburetors.
Air flows faster, smoother through the TM Series venturi and jet blocks due to the flat slide design which help create a smooth bore effect.
The high velocity air flow means a stronger vacuum at the needle jet for more precise metering, better throttle response.
Specifications
StyleFlat Slide
Air JetNone
Spigot Mounting Outside Diameter40
Color/FinishSilver
Needle Valve4.0
Base ColorSilver
Carburetor Size34.00 mm
Pilot Jet50 (VM22/210)
TypeCenter-Pull
Main Jet280 (4/042)
Needle5FP17
Needle JetQ-2 (389 Series)
Product NameCarburetor
Slide Cutaway-

Product Series

Application List

Universal

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
