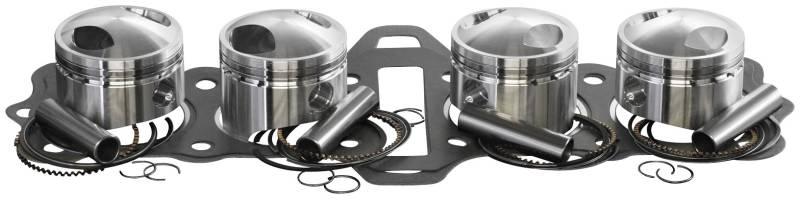

Wiseco Top End Kit - 3.00mm Oversize to 84.00mm, 13.5:1 Compression - CK205

CK205
Not For Sale

Description

SPECIFICATIONS
Displacement: 1441cc
Bore - Standard: 81.00mm
Bore - Actual: 84.00mm
Bore - Oversize: 3.00mm
Stroke: 65.00mm
Compression Ratio - Actual: 13.5:1
Additional Info.: Head Gasket not included
Skirt Coating: ArmorGlide
Note: Cylinder boring required
Note: Cylinder replating required
ITEM CONTENTS
4965M08400 - Suz GSX1340R Hayabusa 08-14 13.5:1 CR
8400XX - 84.00MM RING SET
CW18 - ROUND WIRE PIN LOCKS 18MM (PAIR)
Ring - Set
S600 - PistonPin 18mm x 1.850in. NonChromed SW
Contains all the necessary components for overboring or rebuilding your top end
Feature forged pistons, rings, wrist pins, circlips and top end gasket set

Product Series

Application List

MODELYEARS
Suzuki
GSX1300R Hayabusa2008–2009, 2011–2014
GSX1300R Hayabusa 50th Ann. Edition2014
GSX1300R Hayabusa Limited Edition2012–2013

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
  • Free Ground Shipping (1 - 5 Days)
