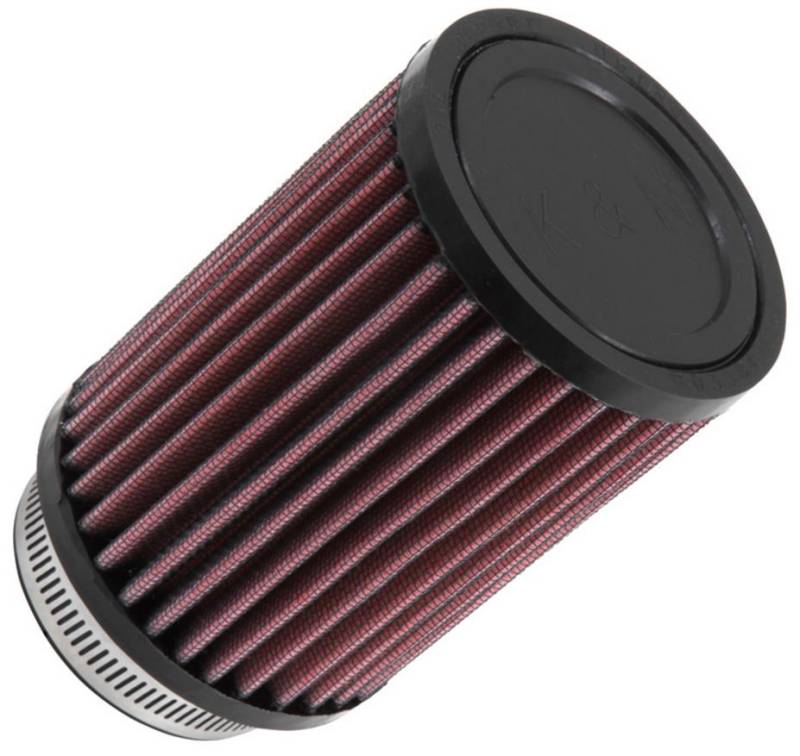

K&N Engineering Universal Round Straight Air Filter - Rubber End Cap - RD-0710

RD-0710
Not For Sale

Description

Mounting Flange Inside Diameter 2 1/2in. MM 63, Filter Outside Diameter 3 1/2in. MM 89, Filter Length 5in. MM 127, Flange Length 5/8in, Flange Type Centered
When selecting one of K&Ns universal round straight air filters, you should consider the following dimensions as they relate to the specification chart:
Mounting Flange Inside Diameter - This is the most critical dimension and should be very close to the diameter of the applications inlet flange. The flange will stretch up to 1/8in. for those in between sizes.
Filter Diameter - This is the overall diameter of the filter. Always use the largest diameter practical to insure maximum filtration.
Filter Length - This dimension is the length of the filter body only, it does not include the flange length. Always use the longest filter practical for maximum filtration.
Flange Angle and/or Length - If no angle is listed in the specifications table, the flange is straight.
Any angle listed is in degrees and can be utilized when space is a problem.
Flange Type - The location of the flange in relation to the O.D. of the filter is sometimes offset to one edge of the filter for more clearance in an application.
K and N Universal Round Straight Sold Individually
These filters are legal ONLY for racing vehicles. Not applicable, nor intended for use on emission controlled street or highway vehicles
Specifications
FeaturesWashable
Inside Diameter2-1/2" / 63,50 mm (2-1/2") / 63.50 mm
Base ColorRed
Filter ShapeCylinder
Product NameAir Filter
Color/FinishRed / Black
Flange PositionCentered
ModelUniversal
StyleClamp-On
Filter Media MaterialCotton Gauze
Filter Height5.00"

Application List

YearsMakeModelNotes
------

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
