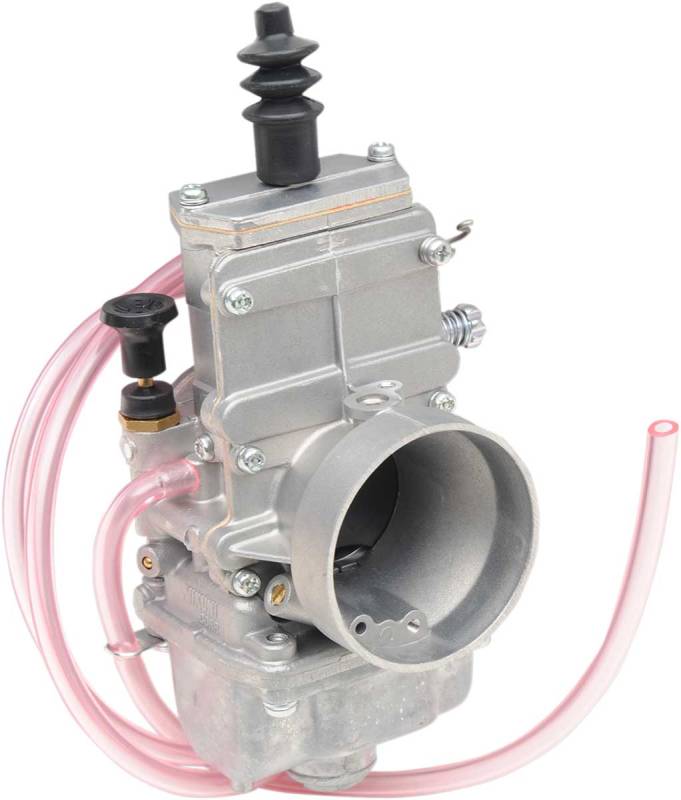

Mikuni TM Series Flat Slide Carburetor (TM- 38-85) - 38mm - TM38-85

TM38-85
Not For Sale

Description

Bore: 38mm
Spigot Mount: 47mm
Main Jet: 230
Pilot Jet: 22.5
Needle Jet: 389 Q-2
Throttle Valve: 4.0
Jet Needle: 6FJ41
TM Series flat side carburetors provide a significant performance improvements over older round slide carburetors.
Air flows faster, smoother through the TM Series venturi and jet blocks due to the flat slide design which help create a smooth bore effect.
The high velocity air flow means a stronger vacuum at the needle jet for more precise metering, better throttle response.
Specifications
Air JetNone
Slide Cutaway4.0
StyleFlat Slide
Spigot Mounting Outside Diameter47
Needle JetQ-2 (389 Series)
Needle Valve-
TypeCenter-Pull
Color/FinishSilver
Main Jet230 (4/042)
Pilot Jet22.5 (VM22/210)
Product NameCarburetor
Carburetor Size38.00 mm
Needle6FJ41
Base ColorSilver

Product Series

Application List

Universal

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
  • Free Ground Shipping (1 - 5 Days)
