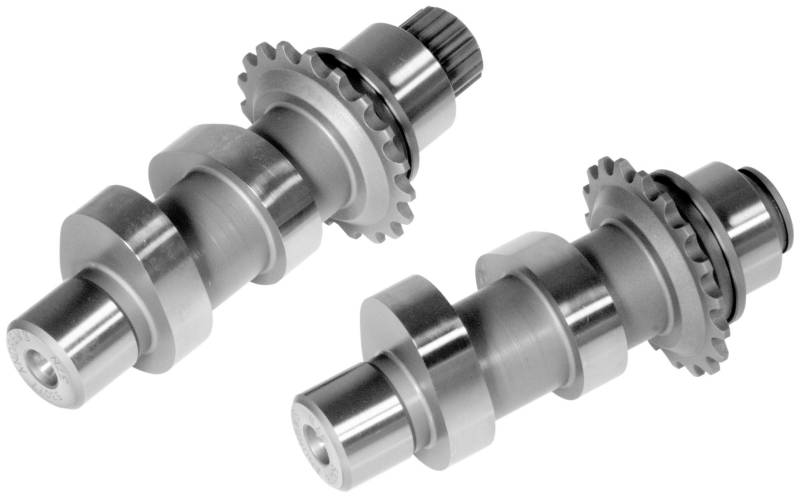

Andrews 54H Chain Drive Camshafts - 216354

Splined chain drive camshafts Kits include: cams, 1 roller bearing and 1 ball bearing (bearings only included in 1999-2006 models) Designed for use with stock Harley-Davidson hydraulic lifters Can be installed on both carbureted and fuel injected models Specially designed for 96 and 103 engines with CR up to 10:1 2200-5600 RPM range High lift springs required on 1999-2004 engines
NOTE: Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance

Specifications

Intake Lift	0.555"
Intake Lobe Centerline	103°
Intake Open	16°
Intake Close	42°
Product Name	Cam Set
Exhaust Close	15°
Exhaust Lift at TDC	0.158"
Exhaust Lobe Centerline	104°
Intake Lift at TDC	0.165"
Application	Exhaust / Intake
Exhaust Open	43°
Intake Duration	238°
Grind	54 Series
Exhaust Duration	238°
Exhaust Lift	0.555"
Type	Chain Drive
