Eliminate spring powered chain adjusters
Engines converted to 2007 type cams and chain drives will have higher output due to less power loss from older spring powered chain tensioners.Instead of the original spring adjusters, new roller cam chains use engine oil pressure tomaintain proper chain tension
Camshafts on all 99-06 Twin Cam 88 engines (exc. 2006 Dyna) can be updated to new style roller chain drives
Designed for use with stock H/D hydraulic lifters
Installing 2007 roller cam chains on earlier engines requires series N Andrews camshafts (listed below) Stock H-D parts are required: 2007 cam support plate, 2007 or later oil pump, cam sprockets and chains and both hydraulic chain adjusters
Matching EZ-install pushrods kits are sold separately. EZ-install pushrods do not require removal of gas tanks or rocker boxes when installing bolt-in camshafts

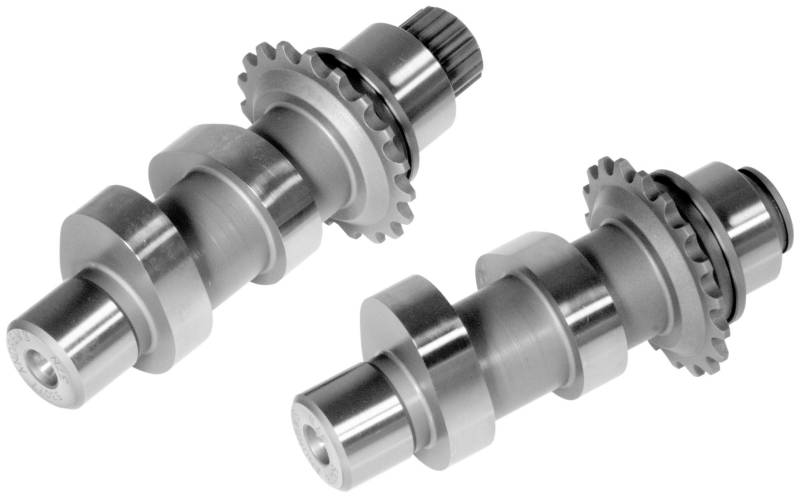

Bolt-in cams for 99-06 engines
Similar cam time to stock 88 engines for cooler running and more power
Intake Opening (degrees): 02
Intake Closing (degrees): 34
Exhaust Opening (degrees): 40
Exhaust Closing (degrees): 02
Intake Duration (degrees): 216
Exhaust Duration (degrees): 222
Intake Lift (in): .489
Exhaust Lift (in): .489
Specifications| Application | Intake / Exhaust |
|---|
| Exhaust Lift | 0.489" |
|---|
| Type | Chain Conversion |
|---|
| Exhaust Lift at TDC | 0.095" |
|---|
| Intake Duration | 216° |
|---|
| Intake Lift at TDC | 0.091" |
|---|
| Exhaust Close | 2° |
|---|
| Exhaust Lobe Centerline | 109° |
|---|
| Intake Close | 34° |
|---|
| Intake Open | 2° |
|---|
| Model | N Series |
|---|
| Exhaust Duration | 222° |
|---|
| Exhaust Open | 40° |
|---|
| Grind | 12 Series |
|---|
| Intake Lift | 0.489" |
|---|
| Product Name | Cam Kit |
|---|
| Intake Lobe Centerline | 106° |
|---|
