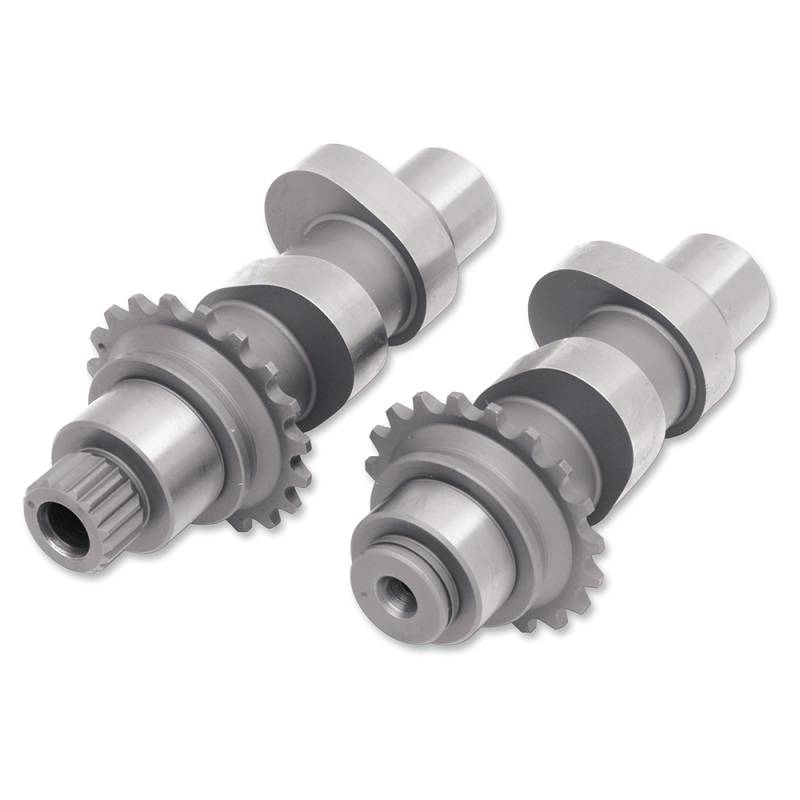

Andrews 48H Chain Drive Camshaft - 216348

Splined chain drive camshafts Kits include: cams, 1 roller bearing and 1 ball bearing (bearings only included in 1999-2006 models) Designed for use with stock Harley-Davidson hydraulic lifters Can be installed on both carbureted and fuel injected models Broad tip cams for Baggers with stock motors Max torque at low and mid RPMs
NOTE: Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance

Specifications

Intake Lift at TDC	0.153"
Intake Close	29°
Intake Lift	0.548"
Grind	48H
Intake Open	13°
Product Name	Cam Set
Application	Intake / Exhaust
Exhaust Lobe Centerline	104°
Intake Lobe Centerline	98°
Exhaust Lift at TDC	0.163"
Exhaust Close	15°
Exhaust Lift	0.548"
Exhaust Open	43°
Intake Duration	@0.053": 222°| @0.020": 257°
Type	Chain Drive
