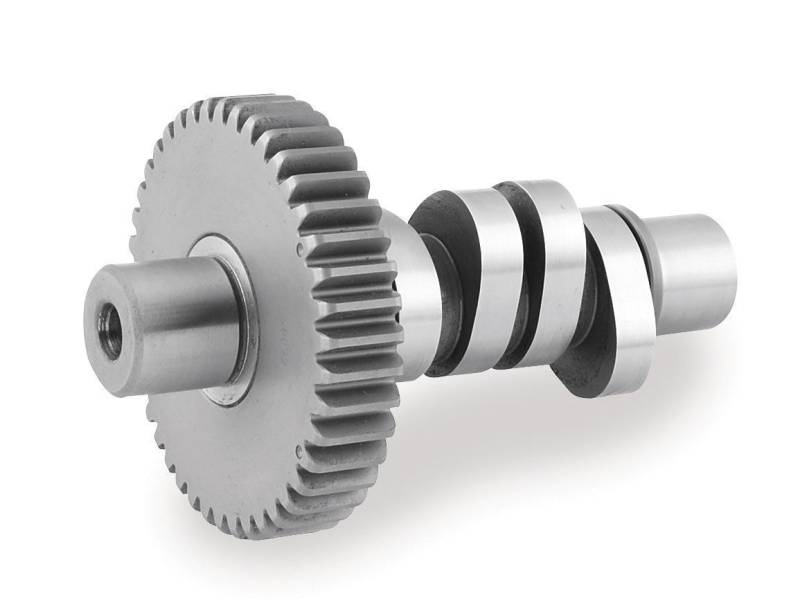

Cams bolt into 1966-84 (except 80-81) Big Twin engines with no head work; on 1980-81 engines the height of the stock H-D valve guides restricts spring travel (and cam lift) to .430in. or less
More mid-range and high-end power; idle unaffected
Spring travel and clearance, plus clearance at main bearing boss must be checked on *980 and later models
Specifications| Exhaust Lift at TDC | Shovel: 0.142" Pan: 0.150" |
|---|
| Application | Intake / Exhaust |
|---|
| Grind | A2 |
|---|
| Intake Lift | Shovel: 0.450" Pan: 0.470" |
|---|
| Exhaust Lift | Shovel: 0.450" Pan: 0.470" |
|---|
| Product Name | Cam |
|---|
| Type | Gear |
|---|
| Color/Finish | Gray |
|---|
| Intake Lift at TDC | Shovel: 0.156" Pan: 0.164" |
|---|
