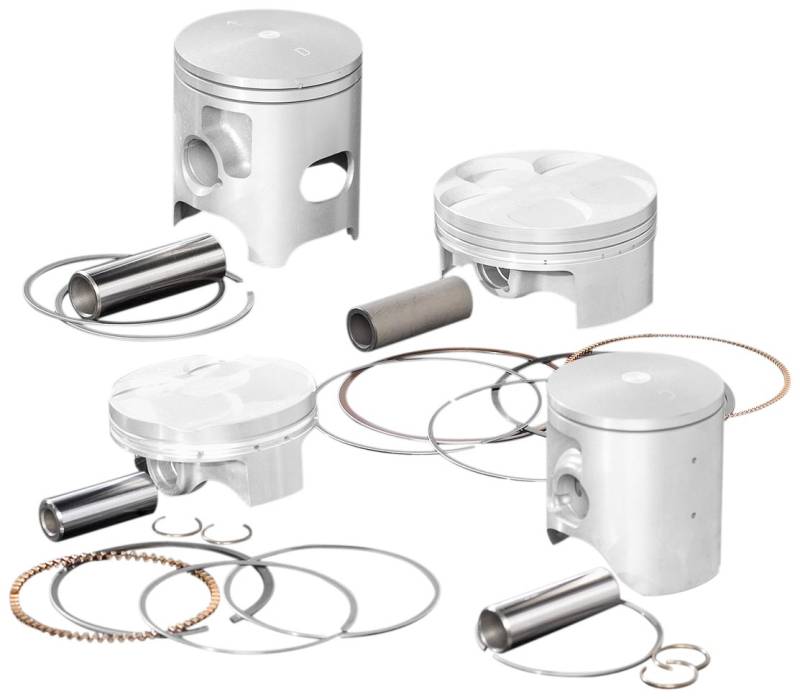

Wiseco Piston Kit - 1.50mm Oversize to 64.92mm - 490M06350

490M06350
Not For Sale

Description

SPECIFICATIONS
Displacement: 176cc
Bore - Standard: 62.00mm
Bore - Actual: 63.50mm
Bore - Oversize: 1.50mm
Stroke: 57.00mm
ITEM CONTENTS
2500CD - 63.50 mm Ring Set
CW16 - ROUND WIRE PIN LOCKS 16MM (PAIR)
S255 - PistonPin 16mm x 1.969in. NonChromed TW
All Wiseco Pistons are forged from high silicon, low expansion aluminum which offers superior strength, reduced weight, improved heat transfer, and longer life.
Diamond turned finish from one of the many CNC computer controlled turning centers guarantees you a perfect finish with no size variation. Wiseco pistons can be installed in any of todays cylinder bore compositions
Wisecos state-of-the-art computerized manufacturing facility is dedicated to supplying both the high-perfomance racer and recreational enthusiast with the finest forged piston available in todays market place.

Product Series

Application List

MODELYEARS
Suzuki
PE1751980–1984

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
