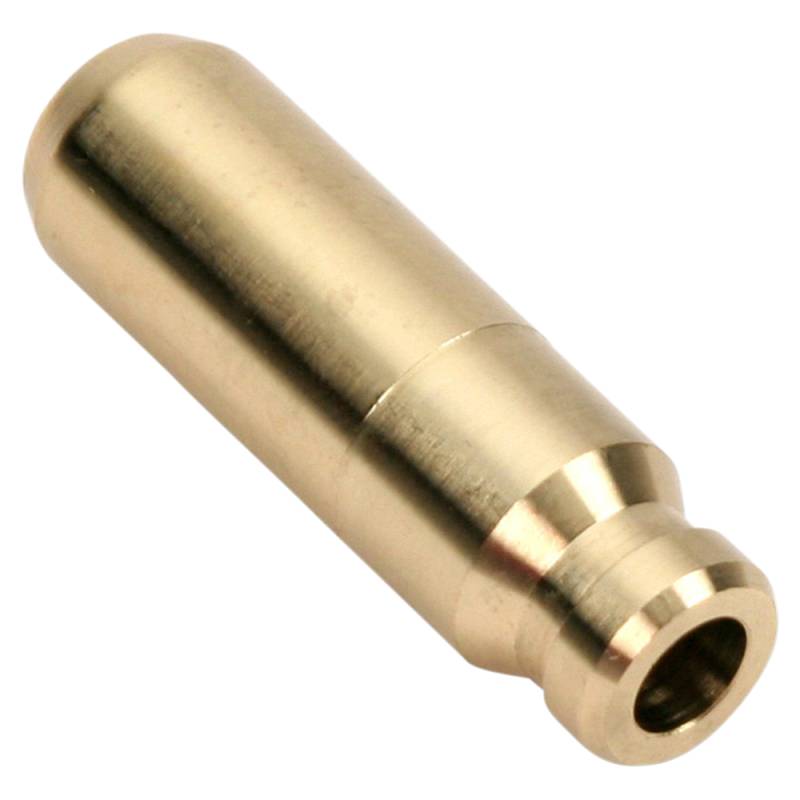

Kibblewhite Precision Intake Valve Guide - 30-30610

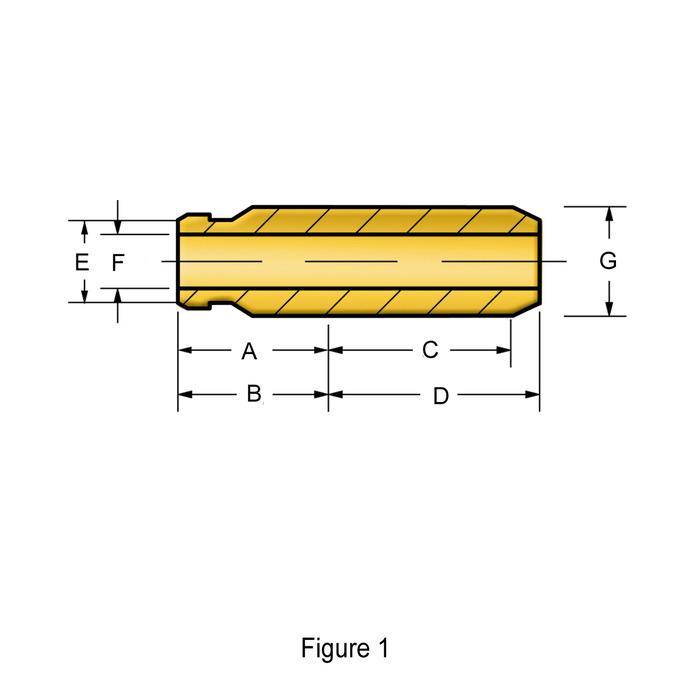

Outside Dia.: (G): 0.3965in. / Std.
A: 0.540in.
B: 0.540in.
C: 0.710in.
D: 0.770in.
E: 0.394in.
F: 0.1961in.
We choose to use C63000 nickel bronze as a material to make valve guides because of its ideal characteristics for the application.
The 4-5 percent nickel content produces superior resistance to wear, and the approximately 80 percent copper content delivers outstanding heat conductivity.
Guides sold each

Specifications

Outside Diameter	0.3965"
Product Name	Valve Guide
Size	Standard
Application	Intake
Inside Diameter	0.1961"
Material	C674 Bronze
