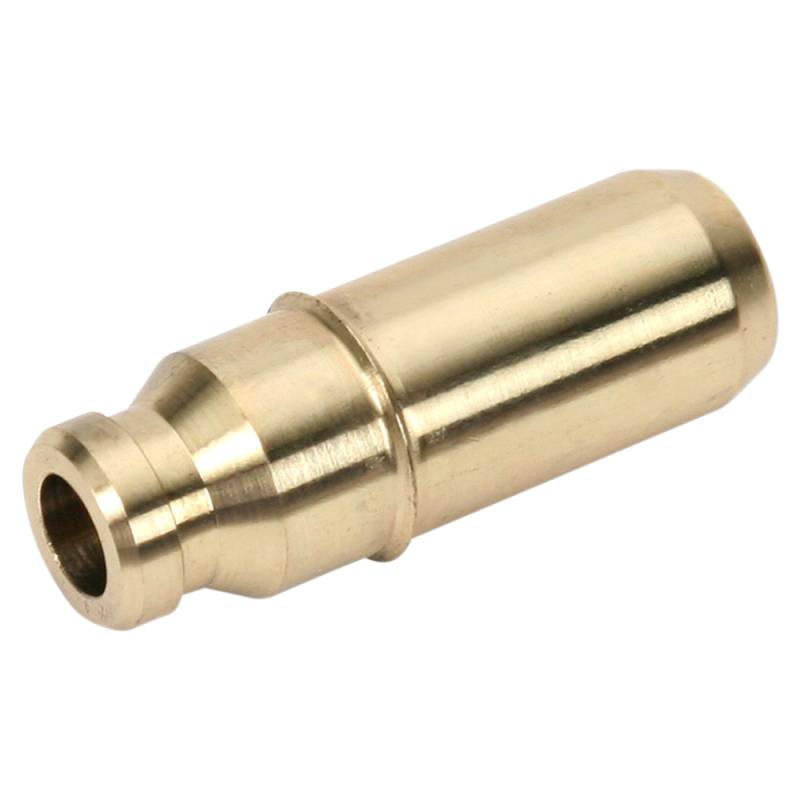

Kibblewhite Precision Intake Valve Guide - 30-30730

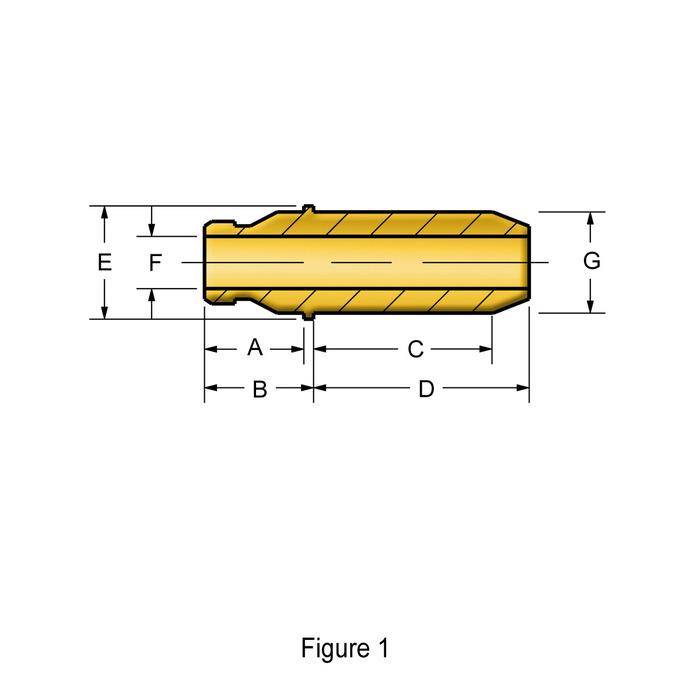

Outside Dia.: (G): 0.4360in. / Std.
A: 0.495in.
B: 0.520in.
C: 0.650in.
D: 0.760in.
E: 0.480in.
F: 0.2155in.
We choose to use C63000 nickel bronze as a material to make valve guides because of its ideal characteristics for the application.
The 4-5 percent nickel content produces superior resistance to wear, and the approximately 80 percent copper content delivers outstanding heat conductivity.
Guides sold each

Specifications

Size	Standard
Material	C674 Bronze
Inside Diameter	0.2155"
Application	Intake
Product Name	Valve Guide
Outside Diameter	0.4360"
