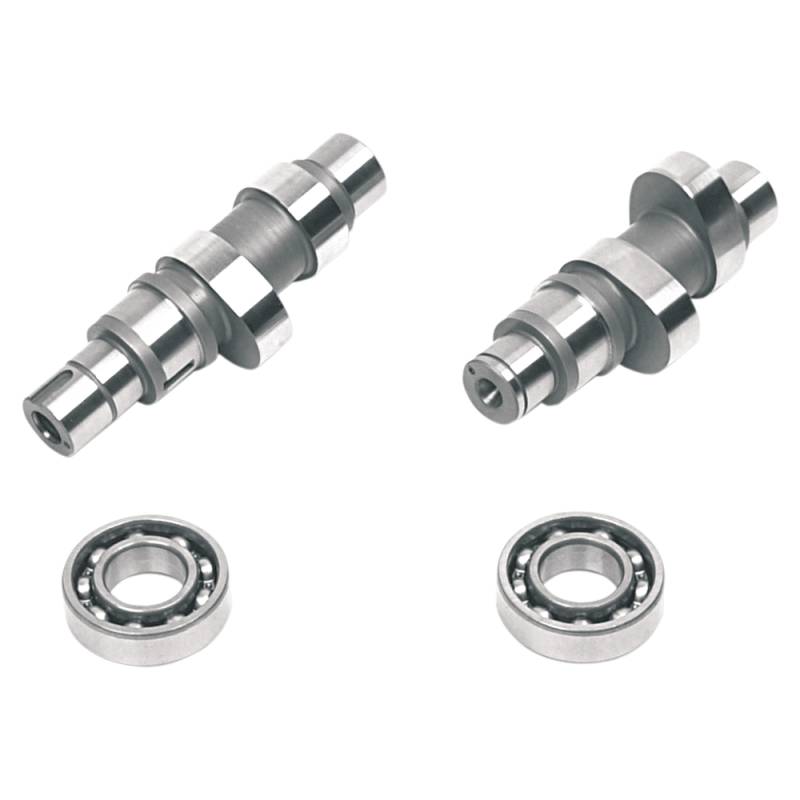

Andrews 55HG Gear Drive Camshafts - 216355G

Gear drive uses less engine power to operate and improves valve timing accuracy over stock chain drive camshafts Dynamometer comparisons show gains of 4 horsepower over chain drive camshafts Can be installed on both carbureted and fuel injected models (exc. 2006 Dyna) Great cam for 95 motors Max torque and HP at mid and upper RPM Similar grind to TW55 Requires spring spacing on 1999-2004 engines NOTE: Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance NOTE: Sold as cams only, inner and outer gear kit and installation kit must be purchased separately

Specifications

Intake Lobe Centerline	102°
Grind	55 Series
Intake Close	46°
Exhaust Duration	252°
Exhaust Lift at TDC	0.181"
Exhaust Lift	0.550"
Exhaust Open	52°
Intake Duration	248°
Intake Lift	0.550"
Application	Exhaust / Intake
Type	Gear Drive
Product Name	Cam Set
Exhaust Close	20°
Intake Open	22°
Exhaust Lobe Centerline	106°
Intake Lift at TDC	0.197"
