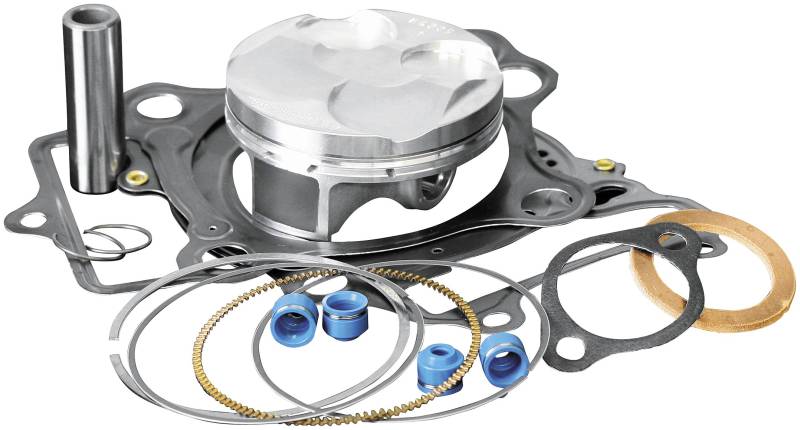

Wiseco Top End Kit - 3.00mm Oversize to 82.00mm, 11:1 Compression - K696

K696
Not For Sale

Description

SPECIFICATIONS
Displacement: 696cc
Bore - Standard: 79.00mm
Bore - Actual: 82.00mm
Bore - Oversize: 3.00mm
Stroke: 65.90mm
Compression Ratio - Actual: 11:1
Note: Cylinder boring required
ITEM CONTENTS
3228XG - 82.00 mm Ring Set
4633M08200 - Honda Hawk 650 88-91 11:1 CR
CW20 - ROUND WIRE PIN LOCKS 20MM (PAIR)
S520 - PistonPin 20mm x 2.362in. NonChromed TW
W5577 - TopEnd Gasket Kit Honda 650NT Hawk
Contains all the necessary components for overboring or rebuilding your top end
Feature forged pistons, rings, wrist pins, circlips and top end gasket set

Product Series

Application List

MODELYEARS
Honda
NT650 Hawk GT1988–1991

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
  • Free Ground Shipping (1 - 5 Days)
