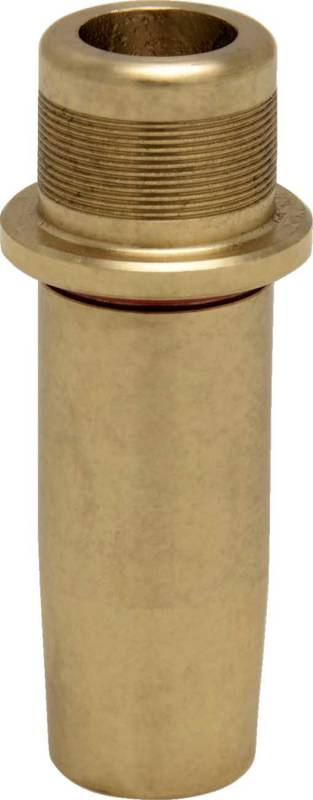

Kibblewhite Precision Intake Valve Guide (+.025) - 20-20HS

Quantity: Pkg. of 1
Material: C630 Bronze
Type: Intake

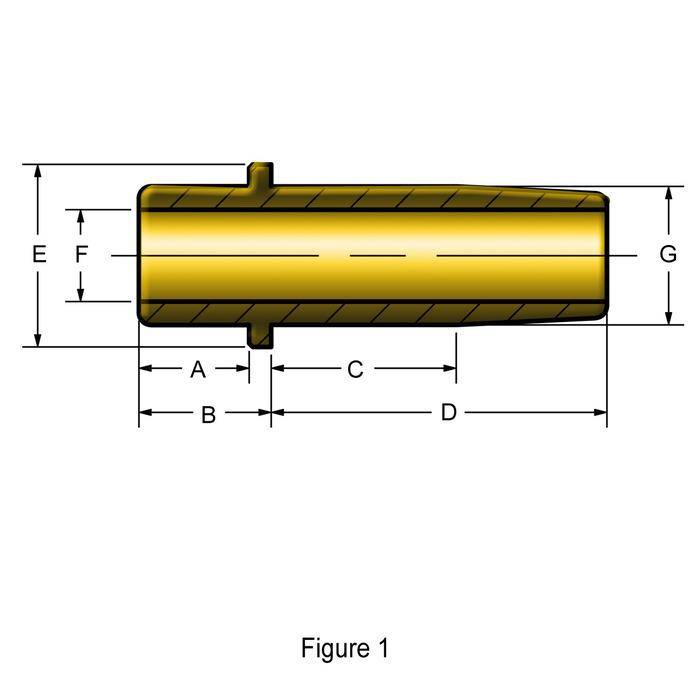

Outside Dia.: (G): 0.5900in. / +0.025in.
A: 0.450in.
B: 0.540in.
C: 0.810in.
D: 1.340in.
E: 0.745in.
F: 0.3745in.
We choose to use C63000 nickel bronze as a material to make valve guides because of its ideal characteristics for the application.
The 4-5 percent nickel content produces superior resistance to wear, and the approximately 80 percent copper content delivers outstanding heat conductivity.
Guides sold each

Specifications

Application	Intake
Length	1.880"
Style	Special Shouldered
Outside Diameter	0.5900"
Inside Diameter	0.3760"
Product Name	Valve Guide
Material	C630 Bronze
Size	Oversize (+0.025")
