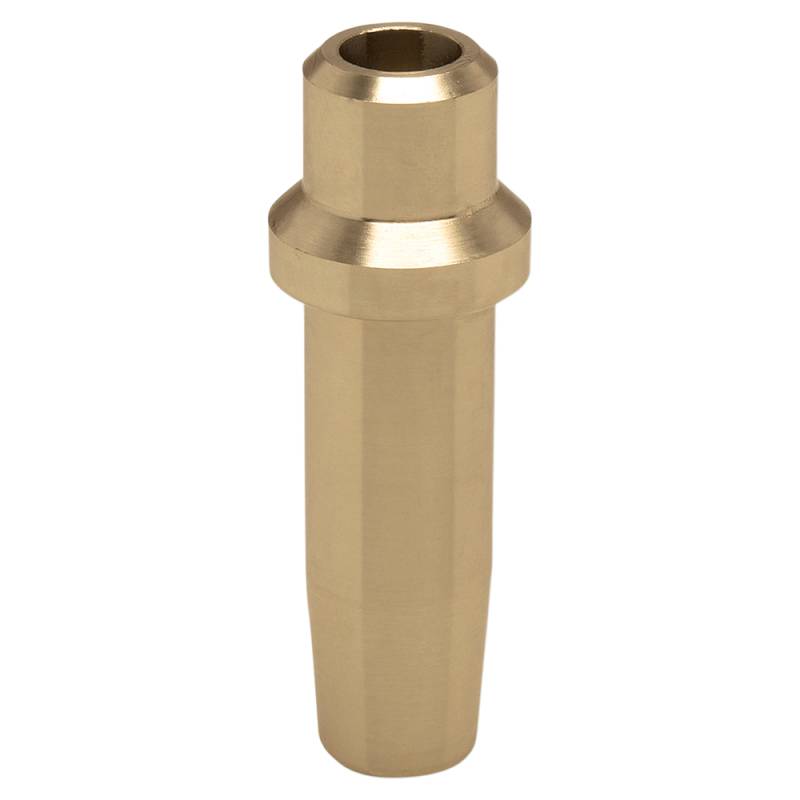

Kibblewhite Precision Intake Valve Guide (+.025) - 20-50HS

Quantity: Pkg. of 1
Material: C630 Bronze
Type: Intake

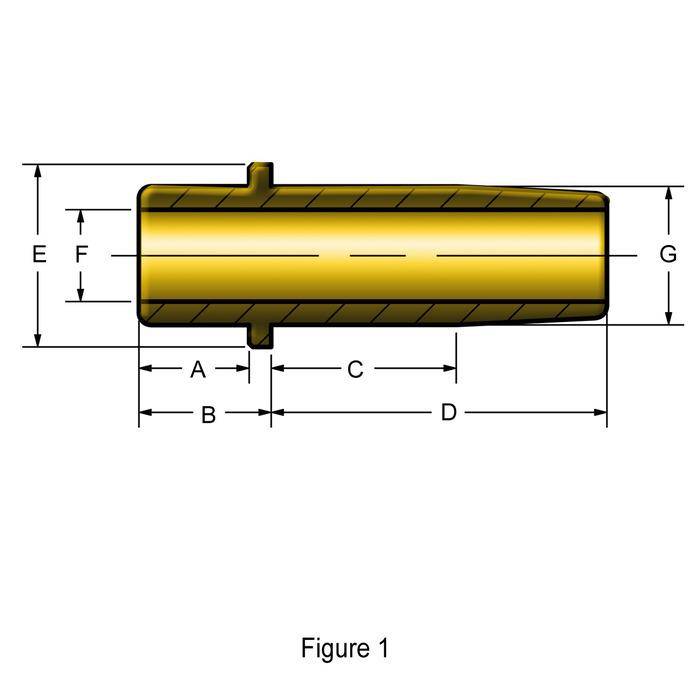

Outside Dia.: (G): 0.6500in./ +0.025in.
A: 0.450in.
B: 0.540in.
C: 0.755in.
D: 1.315in.
E: 0.745in.
F: 0.3745in
We choose to use C63000 nickel bronze as a material to make valve guides because of its ideal characteristics for the application.
The 4-5 percent nickel content produces superior resistance to wear, and the approximately 80 percent copper content delivers outstanding heat conductivity.
Guides sold each

Specifications

Product Name	Valve Guide
Application	Intake
Outside Diameter	0.6500"
Size	Oversize (+0.025")
Material	C630 Bronze
Length	1.855"
Inside Diameter	0.3745"
Style	Special Shouldered
