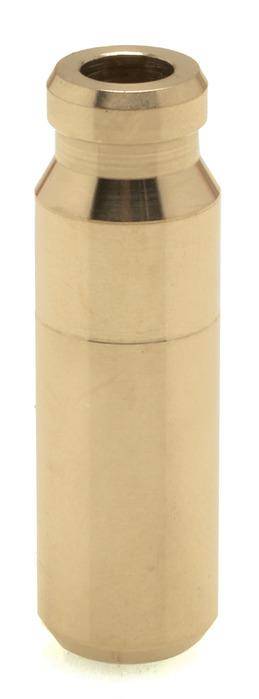

Kibblewhite Precision Intake Valve Guide - 30-30170

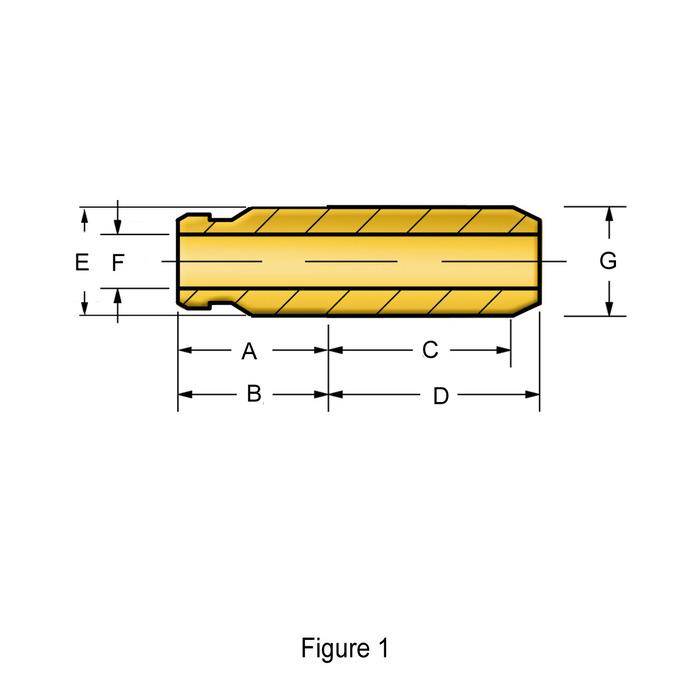

Outside Dia.: (G): 0.4753in. / Std.
A; 0.600in.
B: 0.600in.
C: 0.805in.
D: 1.075in.
E: 0.475in.
F: 0.2590in.
Note: Shouldered guide, use KPM spring kit with these guides or modify O.E.M. basewasher to accept KPM guide shoulder.
We choose to use C63000 nickel bronze as a material to make valve guides because of its ideal characteristics for the application.
The 4-5 percent nickel content produces superior resistance to wear, and the approximately 80 percent copper content delivers outstanding heat conductivity.
Guides sold each
