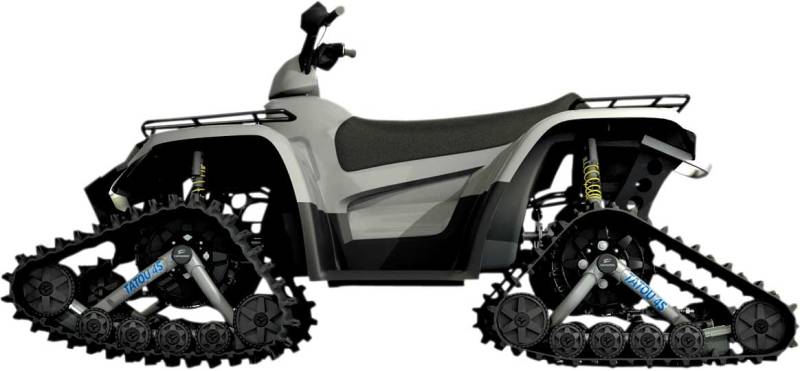

Camso Tatou T4S Track System - 6622-01-0993

6622-01-0993
Not For Sale

Description

Internal drive allows Four Season operation without compromises Matches or exceeds the Tatou UTV, the industrys prior benchmark, in deep snow performance and keeps working all year-round New track profile with upgraded side support improves traction over original Tatou UTV Double tandem stabilizer on frame pivots absorb impacts for better ride and handling Puncture-proof tires (pioneered by Camoplast) improve reliability and provide maximum shock absorption for improved ride quality Wide wheels are supported by two sealed bearings and additional seals for added protection from the elements Largest footprint in the industry (2,470 sq. in.) for best flotation in deep snow, wet mud, sand, and other difficult environments No reduction in load capacity when switching from tires to tracks Kits for most popular UTVs Available in charcoal gray
Specifications
FeaturesFor A-Arm Independent Suspension
Rear Track Length98.5"
Front Track Width11.5"
Ground Clearance+3"
Rear Track Width12.5"
Product NameTrack System
Front Height23.8"
ModelATV T4S
Front Track Length93.4"
Tooth Count15-18
Rear Height23.2"
Ground Surface1,3 m² (2000 in²)
Lug Height1.25"

Product Series

Application List

YearsMakeModelApplicationNotes
2015 - 2015Arctic CatXR 700 LTD
2015 - 2015Arctic CatXR 700
2021 - 2021Arctic CatAlterra 700 EPS SE
2016 - 2020Arctic CatAlterra 700
2015 - 2015Arctic CatXR 700 XT
2018 - 2019TextronAlterra 700 XT
2018 - 2019TextronAlterra 700
2016 - 2017Arctic CatAlterra 700 XT
2019 - 2019TextronAlterra 700 EPS
