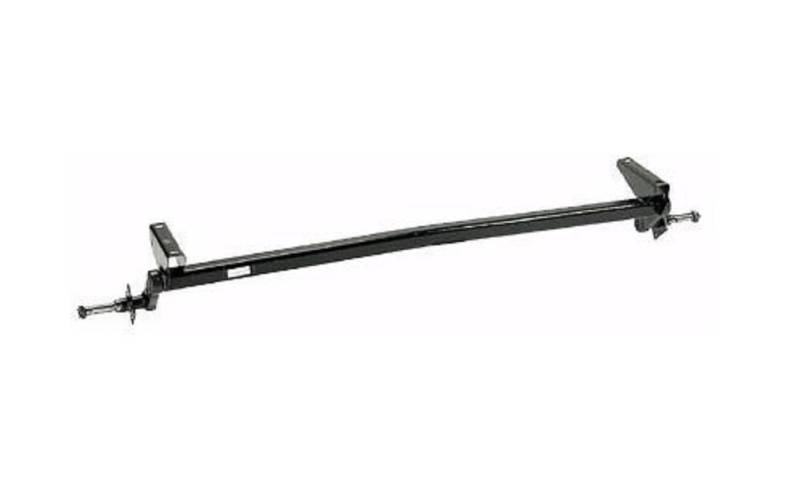

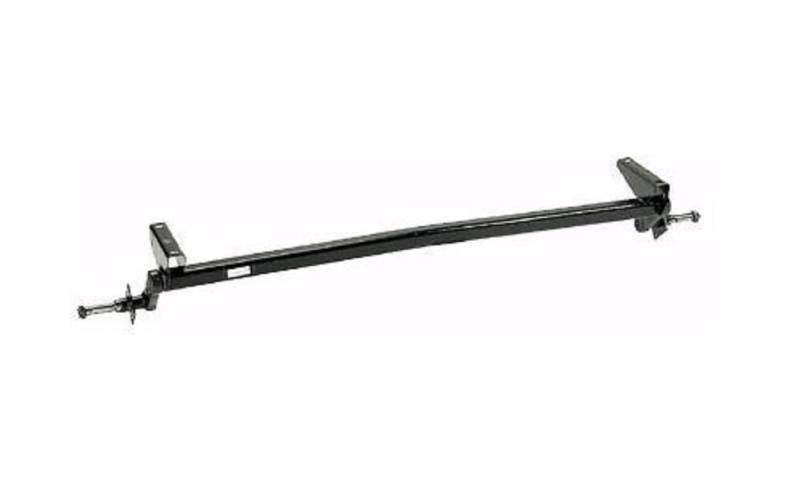

Weight: 3500lb.
Track Width: 84in.
Spring Center Flange: 66-72in.
Overall Length: 89in.
Axle Size: 2 3/8in.
Hub Used: HSH545
Spindle Size: 1 3/8in. Stepped
Brake Size (Electric/Hydraulic): 10in. x 2 1/4/10in. x 2 1/4in.
All axles come with axle nut and cotter pin attached and include spring seats (loose) that can be mounted over or under
NOTE: ALL AXLES MUST BE INSTALLED WITH CENTER BOW UP. THE CENTER BOW EXISTS UNTIL WEIGHT IS PUT ON THE AXLE
