A: 125.4mm
B: 22mm
C: 31mm
D: 20mm
E: 16.7mm
Pin Diameter/Length: 24mm x 60mm
Brass coated surface
Washer: Silver or zinc coating

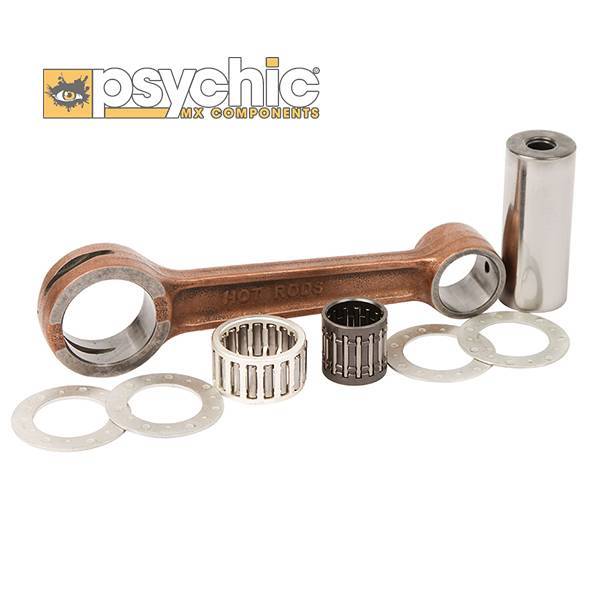

Crank Pin: SCM-415 chromoly, hardness RC 58-62
Road SCM420 chromoly, double honing on both top and bottom bearing holes
Top/bottom bearing: SCM415 chromoly with silver coating for added heat resistance
