SPECIFICATIONS
Displacement: 1117cc
Bore - Standard: 75.50mm
Bore - Actual: 77.00mm
Bore - Oversize: 1.50mm
Stroke: 60.00mm
Compression Ratio - Actual: 12:1
Note: Cylinder boring required
ITEM CONTENTS
3032XG - 77.00 mm Ring Set
CW20 - ROUND WIRE PIN LOCKS 20MM (PAIR)
S520 - PistonPin 20mm x 2.362in. NonChromed TW

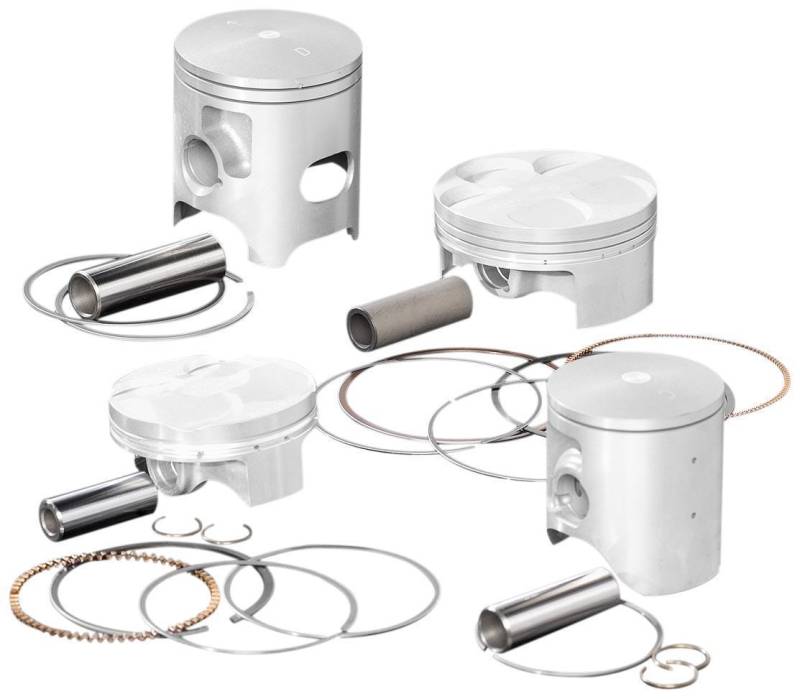

All Wiseco Pistons are forged from high silicon, low expansion aluminum which offers superior strength, reduced weight, improved heat transfer, and longer life.
Diamond turned finish from one of the many CNC computer controlled turning centers guarantees you a perfect finish with no size variation. Wiseco pistons can be installed in any of todays cylinder bore compositions
Wisecos state-of-the-art computerized manufacturing facility is dedicated to supplying both the high-perfomance racer and recreational enthusiast with the finest forged piston available in todays market place.
