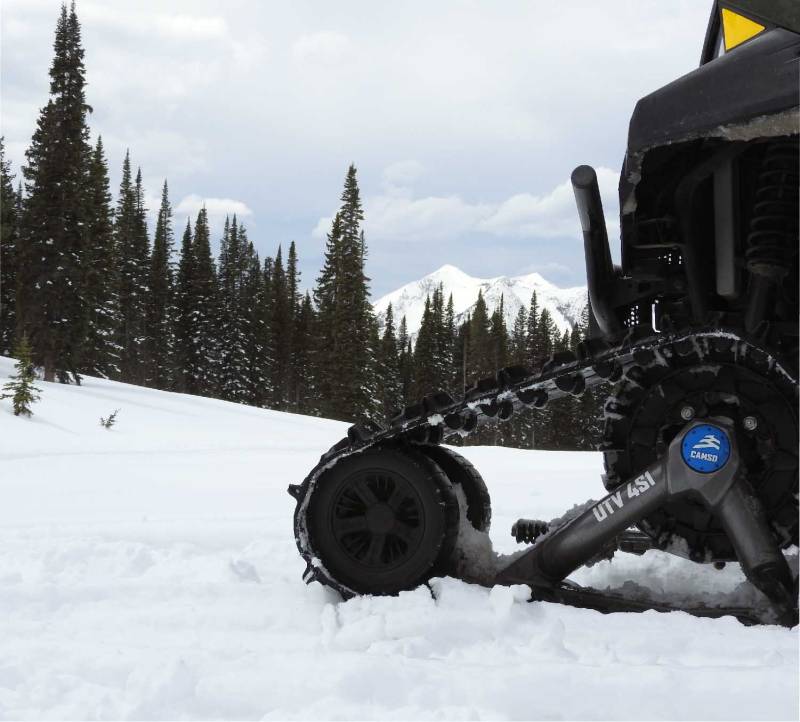

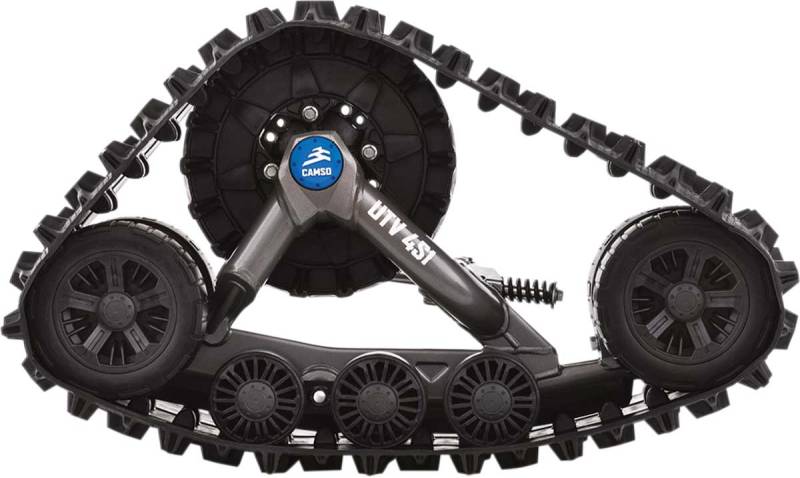

Camso Tatou UTV T4S Track System - 6522-03-1051

6522-03-1051
Not For Sale

Description

Internal drive allows Four Season operation without compromises Matches or exceeds the Tatou UTV, the industrys prior benchmark, in deep snow performance and keeps working all year-round New track profile with upgraded side support improves traction over original Tatou UTV Double tandem stabilizer on frame pivots absorb impacts for better ride and handling Puncture-proof tires (pioneered by Camoplast) improve reliability and provide maximum shock absorption for improved ride quality Wide wheels are supported by two sealed bearings and additional seals for added protection from the elements Largest footprint in the industry (2,470 sq. in.) for best flotation in deep snow, wet mud, sand, and other difficult environments No reduction in load capacity when switching from tires to tracks Kits for most popular UTVs Available in charcoal gray
Specifications
Ground Clearance+5"
ModelUTV 4S1
Front Track Length98.5"
Front Track Width12.5"
Tooth Count15-18
FeaturesFor A-Arm Independent Suspension
Front Height25"
Rear Track Width14"
Product NameTrack System
Ground Surface1,62 m² (2520 in²)
Lug Height1.125"
Rear Height24.7"
Rear Track Length116.7"

Product Series

Application List

YearsMakeModelApplicationNotes
2026 - 2026HondaSXS700M2 Pioneer 700Permanent vehicle modification required
2026 - 2026HondaSXS700M2 Pioneer 700 DeluxePermanent vehicle modification required
2017 - 2025HondaSXS700M2 Pioneer 700 DeluxePermanent vehicle modification
2017 - 2025HondaSXS700M4 Pioneer 700-4Permanent vehicle modification
2026 - 2026HondaSXS700M4 Pioneer 700-4Permanent vehicle modification required
2017 - 2025HondaSXS700M2 Pioneer 700Permanent vehicle modification
2017 - 2025HondaSXS700M4 Pioneer 700-4 DeluxePermanent vehicle modification
2023 - 2025HondaSXS700M2 Pioneer 700 ForestPermanent vehicle modification
2023 - 2025HondaSXS700M4 Pioneer 700-4 ForestPermanent vehicle modification
2026 - 2026HondaSXS700M4 Pioneer 700-4 DeluxePermanent vehicle modification required
