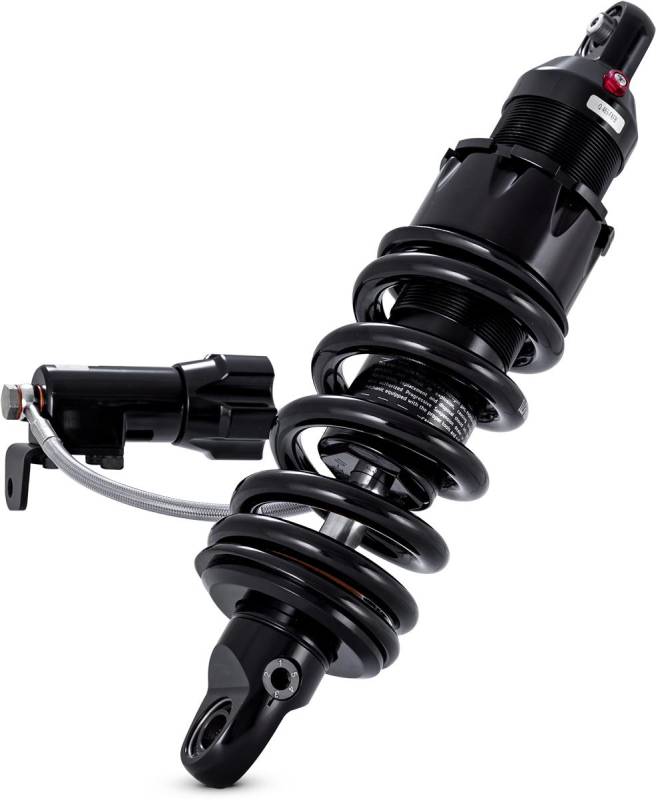

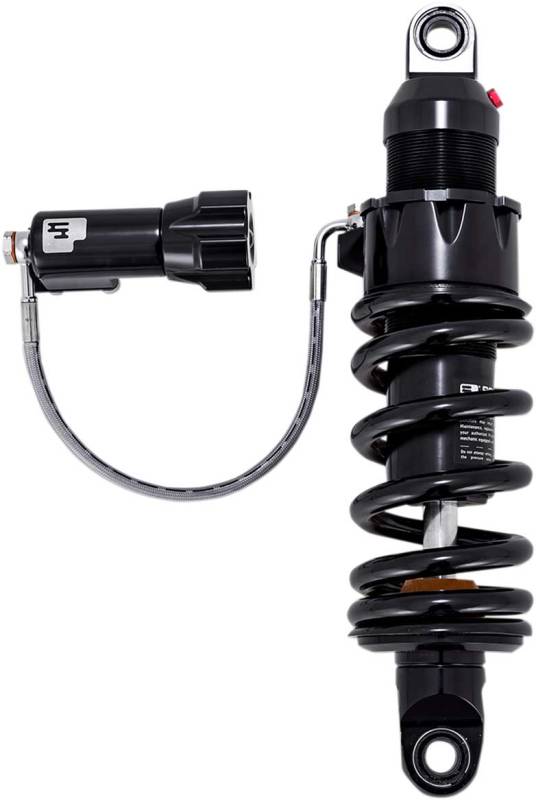

Progressive Suspension 465 Series Standard Duty Shocks with R.A.P. - 12.2in. - 465-5046B

High-pressure gas monotube design for ultimate performance Remote Adjustable Preload (RAP) features a remote hydraulic adjuster to make it even easier to fine-tune your suspension for different loads, such as passengers or luggage Five-position rebound adjustment to tailor the suspension for changing conditions and riding styles Hard-anodized aluminum body and components for excellent durability and corrosion resistance 46mm bore and deflective disc piston provide precise damping 16mm hard-chrome shaft rides on custom viton seals for low friction and leak-free reliability Each shock is custom tuned (damping and spring rate) for each fitment Made in the U.S.A. NOTE: Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered without causing clearance issues such as swingarm/ axle to exhaust contact, as well as chain/ belt guard or tire contact. NOTE: Heavy Duty Applications are recommended for bikes operating at or near the manufacturers maximum load rating over 50% of the time.

Specifications

Damping Method	Gas Charged
Extended Length	12.20"
Material	Aluminum
Mounting Position	Rear
Product Name	Shock Absorber with Remote Adjustable Preload
Type	Coilover Monotube
Adjustment Type	Remote Adjustable Preload
Color/Finish	Anodized / Black
Height Adjustment	Lowers 2.00" / Lowers 1.00"
Model	465 Series
Duty	Standard
Spring Type	Single Progressive Rate
Bore Size	1.81"
Reservoir Location	Internal
