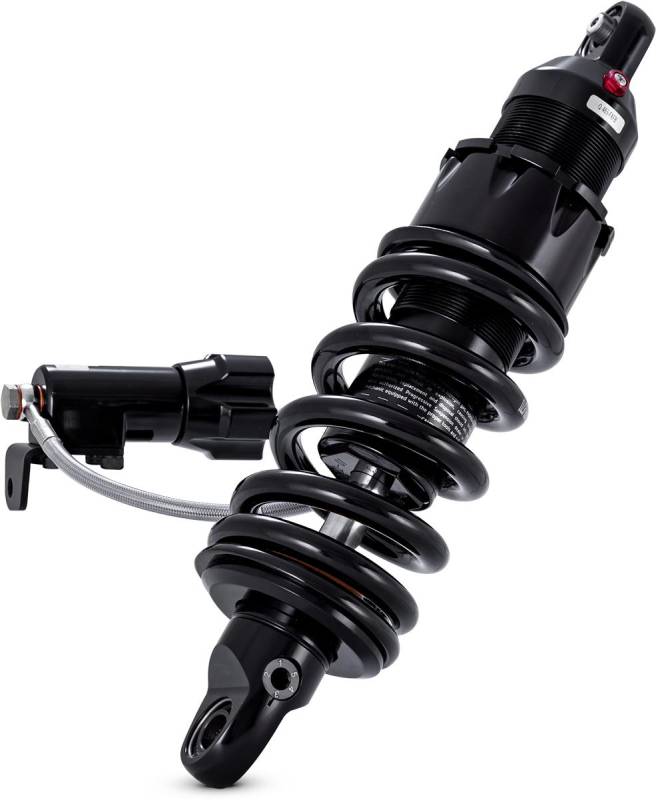

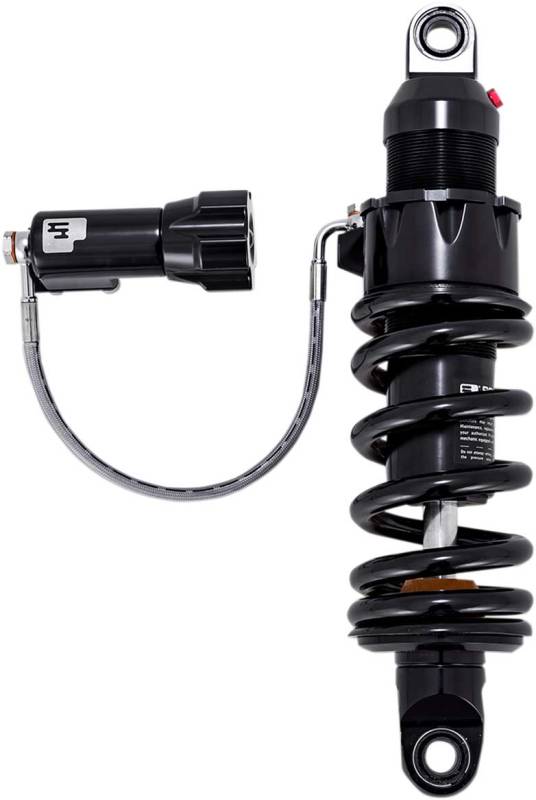

High-pressure gas monotube design for ultimate performance
Remote Adjustable Preload (RAP) features a remote hydraulic adjuster to make it even easier to fine-tune your suspension for different loads, such as passengers or luggage
Five-position rebound adjustment to tailor the suspension for changing conditions and riding styles
Hard-anodized aluminum body and components for excellent durability and corrosion resistance
46mm bore and deflective disc piston provide precise damping
16mm hard-chrome shaft rides on custom viton seals for low friction and leak-free reliability
Each shock is custom tuned (damping and spring rate) for each fitment
Made in the U.S.A.
NOTE: Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered without causing clearance issues such as swingarm/ axle to exhaust contact, as well as chain/ belt guard or tire contact.
NOTE: Heavy Duty Applications are recommended for bikes operating at or near the manufacturers maximum load rating over 50% of the time.
Specifications| Color/Finish | Black / Anodized |
|---|
| Product Name | Shock Absorber with Remote Adjustable Preload |
|---|
| Height Adjustment | Standard / Lowers 1.00" |
|---|
| Reservoir Location | Internal |
|---|
| Bore Size | 1.81" |
|---|
| Damping Method | Gas Charged |
|---|
| Duty | Standard |
|---|
| Extended Length | 12.60" |
|---|
| Material | Aluminum |
|---|
| Model | 465 Series |
|---|
| Mounting Position | Rear |
|---|
| Type | Coilover Monotube |
|---|
| Adjustment Type | Remote Adjustable Preload |
|---|
| Spring Type | Single Progressive Rate |
|---|
