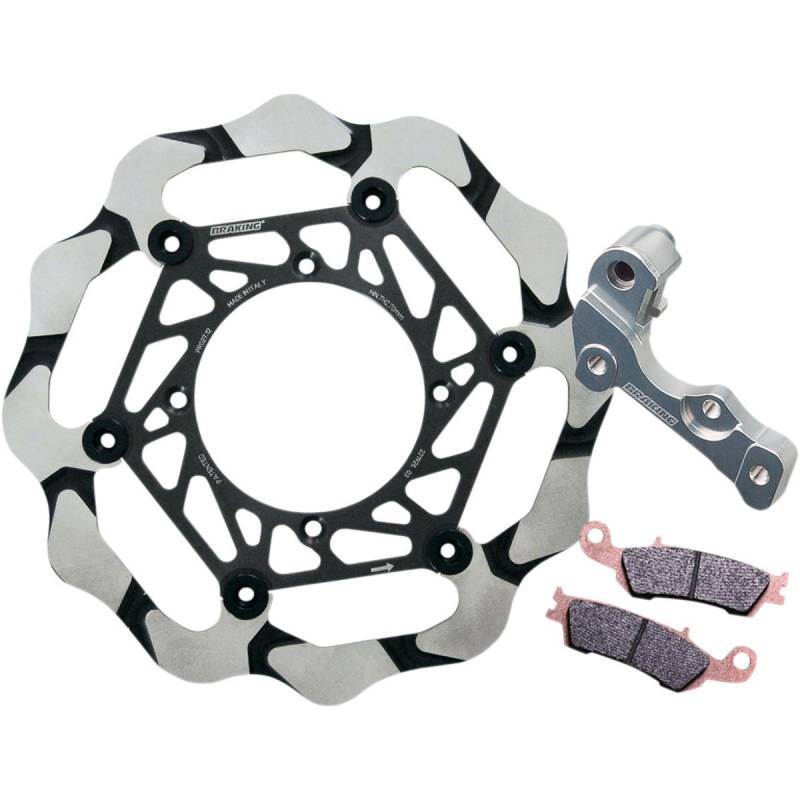

DP Brakes Batfly 280 Aluminum Front Brake Rotor Kit - OKBY29

OKBY29

Description

Oversize Kit features a 280mm oversized front Batfly Aluminum disc, caliper relocation bracket and a set of front CM46 race-grade sintered pads
The Batfly grooves on the discs surfaces create a selfventilating mechanism, allowing the rotor to cool down efficiently
Mud and dirt are easily cleaned from the pads surface and outer rub surface
The outside and inside discs diameter have a non-round design which allows a better radial expansion of the discs in extreme heat conditions
The oversized dimension increases the braking power and improves the performance
The Batfly system cleans and renews the pad surface at each pass on the grooves, maintaining the friction coefficient of the pads at the maximum level, even in the worst environmental conditions
The connection between stainless steel rotor and aluminum hub is given by pins, creating a floating structure of the disc, ensuring the best interaction with pads/ caliper and increasing the performance
Kit includes an oversized bracket that perfectly repositions the caliper to correctly align the pads with the new 280mm disc
Batfly aluminum 280mm front rotors also available separately

Product Series

Application List

YearsMakeModelNotes
2011 - 2014HusabergTE250
2013 - 2014HusabergFE250
2014 - 2018HusqvarnaTE250
2014 - 2018HusqvarnaTC125
2011 - 2014HusabergTE300
2014 - 2018HusqvarnaFC450
2010 - 2012HusabergFE570
2013 - 2014HusabergFE350
2010 - 2018KTM300 XC-W
2012 - 2013HusabergTE125
2014 - 2018HusqvarnaTE300
2010 - 2018KTM150 SX
2017 - 2018KTM150 XC-W
2011 - 2018KTM350 SX-F
2014 - 2018HusqvarnaFE350
2010 - 2012HusabergFE390
2010 - 2018KTM250 XC-W
2014 - 2018HusqvarnaFC250
2012 - 2016KTM500 EXC
2009 - 2018KTM250 SX
2014 - 2018HusqvarnaFE450
2009 - 2018KTM450 SX-F
2014 - 2018HusqvarnaTC250
2009 - 2014HusabergFE450
2017 - 2018KTM250 EXC-F
2012 - 2018KTM250 XC-F
2010 - 2018KTM250 XC
2010 - 2010HusabergFX450
2017 - 2018KTM350 XC-F
2012 - 2018KTM350 EXC-F
2014 - 2018HusqvarnaFC350
2014 - 2018HusqvarnaFE501
2014 - 2016HusqvarnaTE125
2010 - 2018KTM125 SX
2009 - 2018KTM250 SX-F

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
  • Free Ground Shipping (1 - 5 Days)
