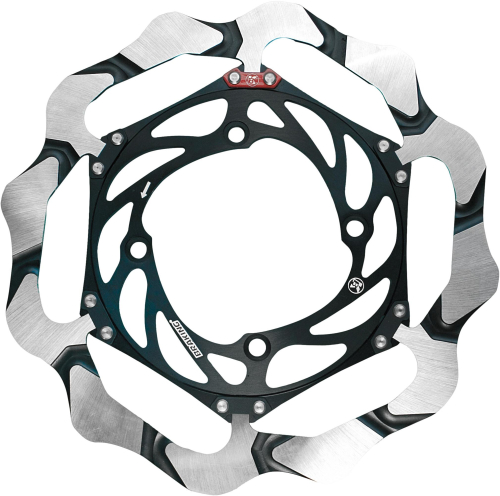

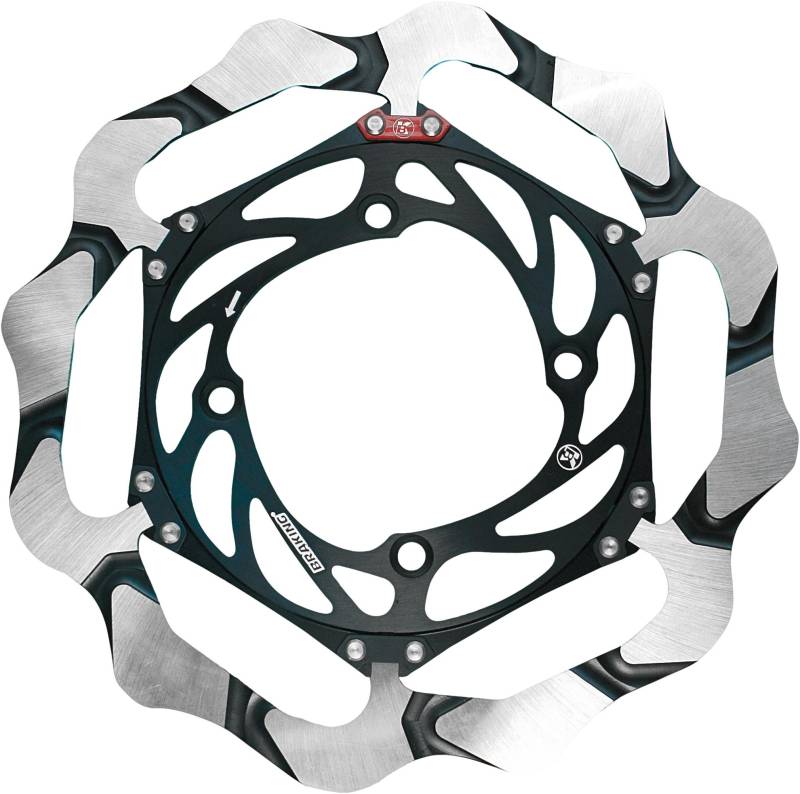

Braking Epta Batfly Rotor - BY4126E

BY4126E
Not For Sale

Description

270 Rotor
Developed from an evolution of the original Batfly disc. The outline rotor has increased the performance of actual Batfly thanks to the introduction of a new coupling system between rotor and carrier.
Same BATFLY geometry with directional non round profile. The carrier is made of ALUMINUM AL7075-T6. This allows for an optimized shape, reduced weight & higher rigidity, with introduction of a new style.
Improved rotor to hub load transfer: The classic hubrotor coupling system, the pins, are substituted with new connecting components, avoiding deformation and floating variability during product life.
The new rotor-hub coupling geometry, that allows the rotor stems to slide in radial direction, improves the response to stresses and deformations at high temperature. More homogeneous disk temperature without increasing the weight.
The feeling of the rider is improved and more direct. The new rotor-hub coupling system is more direct and the two components are in constant and direct contact. This means that the rider feels a powerful and effective brake from the beginning to the end of the braking event.
Main MXGP riders declare an improved feeling and power of the brake system using the new EPTA discs.

Product Series

Application List

MODELYEARS
Kawasaki
KLX450R2008–2010
KX2502006–2007
KX250
OEM is 270
2019–2023
KX250F2006–2014
KX250F
OEM is 270
2015–2018
KX250X
OEM is 270
2021–2023
KX450
OEM is 270
2019–2023
KX450F2006–2014
KX450F
OEM is 270
2015–2018
KX450X2021–2023

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
  • Free Ground Shipping (1 - 5 Days)
