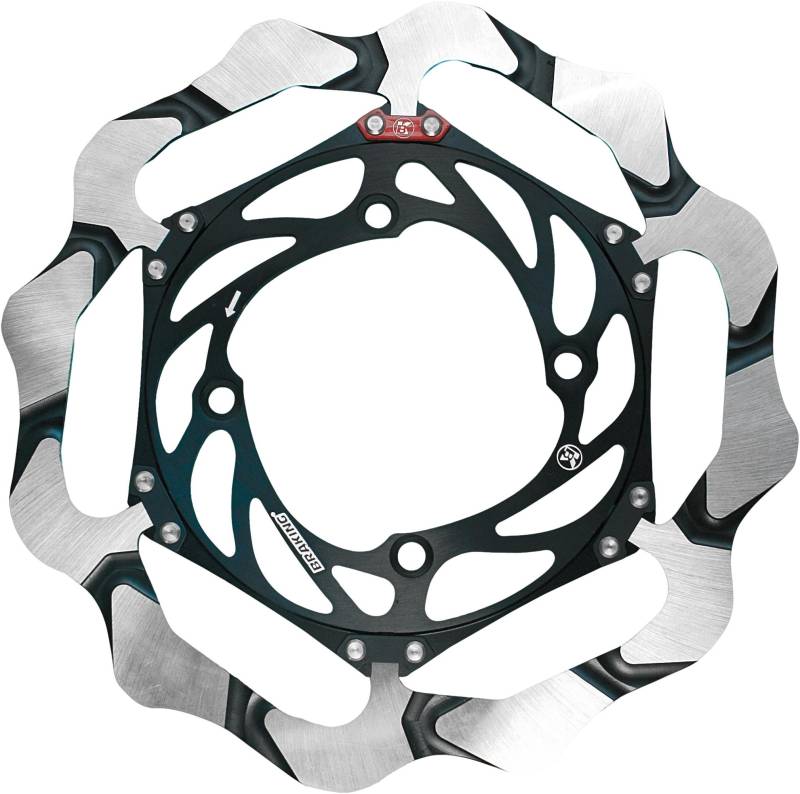

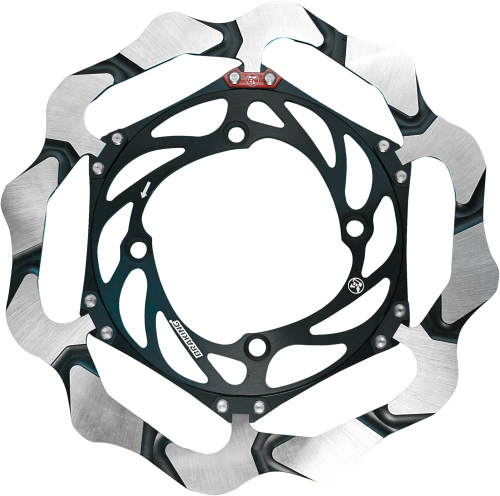

Braking Epta Batfly Rotor - BY4124E

BY4124E
Not For Sale

Description

Developed from an evolution of the original Batfly disc. The outline rotor has increased the performance of actual Batfly thanks to the introduction of a new coupling system between rotor and carrier.
Same BATFLY geometry with directional non round profile. The carrier is made of ALUMINUM AL7075-T6. This allows for an optimized shape, reduced weight & higher rigidity, with introduction of a new style.
Improved rotor to hub load transfer: The classic hubrotor coupling system, the pins, are substituted with new connecting components, avoiding deformation and floating variability during product life.
The new rotor-hub coupling geometry, that allows the rotor stems to slide in radial direction, improves the response to stresses and deformations at high temperature. More homogeneous disk temperature without increasing the weight.
The feeling of the rider is improved and more direct. The new rotor-hub coupling system is more direct and the two components are in constant and direct contact. This means that the rider feels a powerful and effective brake from the beginning to the end of the braking event.
Main MXGP riders declare an improved feeling and power of the brake system using the new EPTA discs.

Product Series

Application List

MODELYEARS
Husqvarna
FC2502014–2023
FC3502014–2023
FC4502014–2023
FE2502014–2019
FE3502014–2022
FE4502014–2019
FE5012015–2022
FX3502017–2023
FX4502017–2023
TC1252014–2023
TC2502014–2023
TE2502014–2018
TE250i2018–2023
TE3002014–2018
TE300i2019–2023
KTM
125 EXC2000–2007
125 SX1993–2023
125 XC2021–2023
144 SX2007–2008
150 SX2009–2022
150 XC2010–2014
150 XC-W2017–2019
200 EXC2000–2005
200 SX1998–2004
200 XC2006–2009
200 XC-W2006–2016
250 EXC2000–2005
250 SX1993–2022
250 SX-F2005–2022
250 XC2006–2019
250 XC-W2006–2018
300 EXC2000–2005
300 SX1993–1996
300 XC2006–2019
300 XC-W2006–2018
350 SX-F2011–2022
360 SX1996–1997
380 EXC2000–2002
380 SX1998–2002
400 EXC2000–2006
400 SX1998–2002
400 XC-W2007, 2009–2010
440 SX1994
450 EXC2003–2005
450 SX-F2003–2023
450 XC-W2006–2016
500 EXC2012–2016
500 XC-W2012–2016
520 EXC2000–2002
525 EXC2003–2006
525 XC-W2007
530 XC-W2008–2011

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
