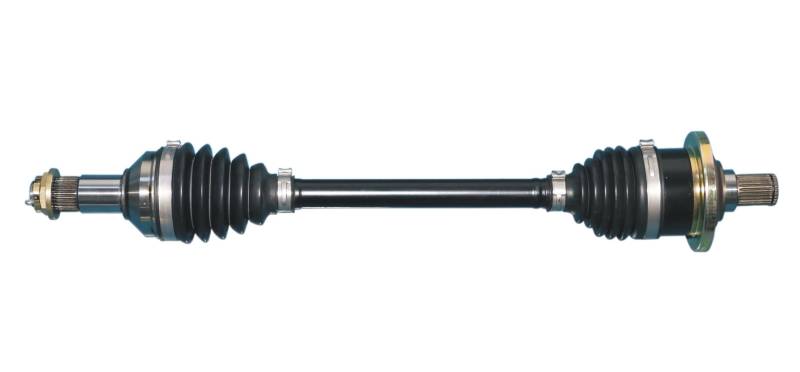

Open Trail HD 2.0 Front Axle - ARC-6016HD

ARC-6016HD
Not For Sale

Description

Chromoly steel solid steel shaft
Greater durability and smoother performance under severe operating conditions
TPE (Thermoplastic Elastomer) dust boots for superior teat and puncture resistance
Premium heavy duty, high temp moly grease
UP to 35% stronger than OEM

Product Series

Application List

MODELYEARS
Arctic Cat
400 4x4
Front Right Manual Trans
2006–2007
400 4x4 Auto
Front Right
2006–2008
400 4x4 Auto LE
Front Right
2006–2007
400 4x4 Auto TBX
Front Right
2006
400 4x4 Auto TRV
Front Right
2006–2010
400 4x4 Auto TRV Plus
Front Right
2007
400 4x4 VP
Front Right Manual Trans
2006
450
Front Right
2011
450 EFI H1 4x4 Auto
Front Right
2010
450 TRV
Front Right
2011
500
Front Right
2014
500 4x4
Front Right
2006–2009
500 4x4 Auto
Front Right
2006–2009
500 4x4 Auto LE
Front Right
2006
500 4x4 Auto TBX
Front Right
2006
500 4x4 Auto TRV
Front Left
2006
500 4x4 Auto TRV
Front Right
2006, 2008
500 Core
Front Left, Front Right
2013
500 XT
Front Right
2013–2014
550
Front Right
2014
550 Core
Front Right
2013
550 H1 EFI
Front Right
2009
550 LTD
Front Right
2014
550 TRV Cruiser
Front Right
2011
550 TRV GT
Front Right
2011
550 TRV S GT
Front Right
2010
550 XT
Front Right
2013–2014
550i GT
Front Right
2012
550i LTD
Front Right
2012
650 H1 4x4 Auto
Front Right
2007–2008
650 H1 4x4 Auto LE
Front Right
2007
650 H1 4x4 Auto Mud Pro
Front Right
2010
650 H1 4x4 Auto SE
Front Right
2006
650 H1 4x4 Auto TBX
Front Right
2007
650 H1 4x4 Auto TRV
Front Right
2009
650 H1 4x4 Auto TRV Plus
Front Right
2007
650 H1 4x4 Auto TRV Plus LE
Front Right
2007
650 V-2 4x4 Auto
Front Right
2006
650 V-2 4x4 Auto LE/TS
Front Right
2006
700
Front Right
2014
700 Core
Front Right
2013
700 Diesel
Front Right
2007–2008
700 EFI 4x4 Auto
Front Right
2007–2008
700 EFI 4x4 Auto LE
Front Right
2007
700 EFI 4x4 Auto M4
Front Right
2008
700 EFI 4x4 Auto SE
Front Right
2006
700 EFI 4x4 Auto TRV Cruiser
Front Right
2008
700 EFI 4x4 Auto TRV LE
Front Right
2008
700 EFI H1 4x4 Auto
Front Right
2009–2010
700 EFI H1 4x4 Auto LE
Front Right
2009–2010
700 EFI H1 4x4 Auto Mud Pro
Front Right
2009–2010
700 EFI H1 4x4 Auto SE
Front Right
2008–2009
700 EFI H1 4x4 Auto TBX
Front Right
2010
700 LTD
Front Right
2011, 2014
700 S
Front Right
2010–2011
700 Super Duty Diesel
Front Right
2011–2014
700 TRV GT
Front Right
2011
700 XT
Front Right
2013–2014
700i
Front Right
2012
700i GT
Front Right
2012
700i LTD
Front Right
2012
1000 EFI H2 4x4 Auto Mud Pro
Front Right
2010
1000 EFI H2 4x4 Auto TRV
Front Right
2010
1000 TRV Cruiser
Front Right
2009–2010
TBX 700
Front Right
2014
TBX 700 LTD
Front Right
2011
TBX 700 XT
Front Right
2013
TBX 700i GT
Front Right
2012
Thundercat 1000 4x4 Auto
Front Right
2010
Thundercat 1000 4x4 Auto LE
Front Right
2010
TRV 400
Front Left, Front Right
2014
TRV 400 Core
Front Right
2013
TRV 450i
Front Right
2012
TRV 450i GT
Front Right
2012
TRV 500
Front Right
2014
TRV 500 Core
Front Left, Front Right
2013
TRV 550 LTD
Front Right
2013–2014
TRV 550 XT
Front Right
2013–2014
TRV 550i Crusier
Front Right
2012
TRV 550i GT
Front Right
2012
TRV 700 LTD
Front Right
2013–2014
TRV 700 XT
Front Right
2013–2014
TRV 700i Cruiser
Front Right
2012
TRV 700i GT
Front Right
2012

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
  • Free Ground Shipping (1 - 5 Days)
