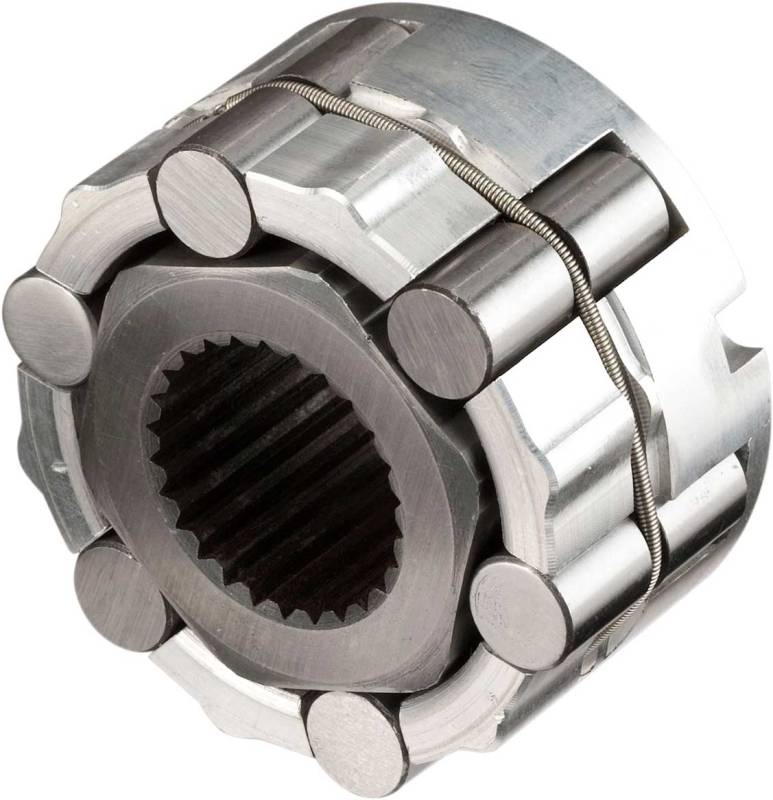

Moose Utility Hub Clutch 4X4 - 1132-1396

1132-1396
Not For Sale

Description

Much stronger than OEM and less expensive The stock unit uses a weak cast-aluminum cage that is prone to breakage; we use a 6061 billet machined cage that is thicker throughout the fingers to make it much, much stronger This ready to bolt-in unit also includes a machined-steel inner splined hub and heat-treated steel rollers Garter spring to hold everything in place This hub installs on driveshafts with a spline Replaces Polaris PART #s 1520214 and 1520281
Specifications
Material6061 Billet Aluminum
Product NameClutch Hub
Type4x4

Application List

MODELYEARS
Polaris
300 4x41995
Big Boss 400L 6x61995–1997
Big Boss 500 6x61998–1999
Diesel (455cc)1999–2001
Magnum 325 4x42000–2002
Magnum 425 4x41995–1998
Magnum 500 4x41999–2002
Ranger 6x6 5001999
Scrambler 400 4x41995–2002
Scrambler 500 4x41997–1999
Sportsman 3351999–2000
Sportsman 4002001–2004
Sportsman 400L1997
Sportsman 500 4x41996–2000
Sportsman 500 HO2001–2004
Worker 3351999
Worker 5001999–2001
Xpedition 3252000–2001
Xpedition 4252000–2001
Xplorer 250 4x42000–2002
Xplorer 300 4x41996–1999
Xplorer 400 4x41995–2001
Xplorer 500 4x41997

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
