Trail Tech Voyager Pro GPS Kit - 922-128

922-128
Not For Sale

Description

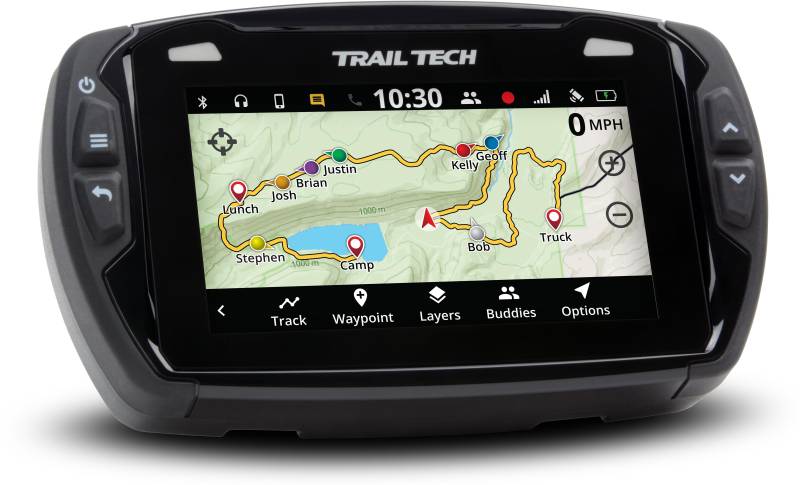

Trail Tech Voyager Pro, the Connected Riders GPS. A premium GPS for Powersports.
The map screen is enabled with base maps, topography lines, hill shading, and some trails. Record or load GPX trails and riding areas, and transfer to a PC using the MicroSD card. Voyager Pro comes loaded with North American maps, but other map regions can be downloaded for free.
Amongst the major features is Buddy Tracking. Buddy Tracking uses localized radio signals and can support up to 20 riders in a single group. View members of your ride group on the map screen in real time, increase your following distances, and use the emergency beacon to summon your buddies. Cell reception is not required.
Voyager Pro is Bluetooth enabled for intercom, phone and media controls. Play songs from your phone or MicroSD card using a Bluetooth headset, speaker, or intercom. Two phones and two headsets can be connected at the same time.
The 4in. glove friendly color touchscreen TFT display is visible in all conditions, including direct sunlight. Sealed and rated IP67 for anti-dust/water intrusion, it is built to withstand the harshest elements that come with extreme riding conditions. The mounting dock hard mounts to the dashboard, can be locked, and allows for quick removal of Voyager Pro from the machine. The dock utilizes the AMPs hole pattern, and is compatible with the full line of RAM brand mounts or Trail Tech mounting hardware.
Voyager Pro integrates with your vehicle using standard Trail Tech vehicle sensors, providing vital ride data such as engine temperature, RPM, battery voltage, speed/distance and more.
At 5.6 x 3.5 inches, Voyager Pro still fits on dirt bike dashboards, but is big enough to use on adventure bikes and UTVs. Voyager Pros mapping abilities and buddy tracking make it the premium choice for off-road riders.
12V DC power required, make sure your vehicle has a battery.
EVERYBODY LOVES THE TACH GRAPH!
The tach screen is dominated by a large animated tachometer bar graph. It also displays ambient temperature, trip distance an

Product Series

Application List

MODELYEARS
Gas Gas
EC 2502021–2025
EC 3002021–2026
EC 450F2024–2025
EX 2502022–2025
EX 250F2021–2025
EX 3002021–2026
EX 350F2021–2025
EX 450F2021–2024
MC 2502022–2026
MC 250F2021–2026
MC 250F Factory Edition2023, 2025
MC 3002025
MC 350F2022–2025
MC 450F2021–2026
MC 450F Factory Edition2023–2025
MC 450F Troy Lee Designs2022
Honda
XR650R2000–2007
Husqvarna
FC2502019–2025
FC250 Factory Edition2025–2026
FC250 Rockstar Edition2022
FC3502019–2025
FC350 Heritage2023, 2025
FC4502019–2025
FC450 Factory Edition2025–2026
FC450 Rockstar Edition2022–2023
FE2502019
FE3502015–2022
FE350S2016, 2020–2026
FE4502019, 2023–2026
FE450 Heritage2023, 2025
FE5012019–2022
FE501S2016, 2020–2026
FS4502019–2024
FX3502019–2026
FX4502019–2024
TE1502019, 2024–2026
TE150i2020–2023
TE2502024–2026
TE250i2019–2023
TE3002024–2026
TE300 Heritage2023, 2025
TE300i2019–2023
TX3002019, 2024–2026
TX300i2020–2023
Kawasaki
KLR6501987–2018, 2022–2026
KTM
150 XC-W2019, 2023–2026
150 XC-W TPI2020–2022
250 EXC-F2019
250 SX-F2019–2026
250 SX-F Factory Edition2022, 2024–2026
250 SX-F Troy Lee Designs2021
250 XC2019, 2023–2026
250 XC-F2019–2026
250 XC-W2023–2026
250 XC-W TPI2020–2022
300 XC2019, 2023–2026
300 XC-W2023–2026
300 XC-W TPI2020–2022
350 EXC-F2019–2026
350 SX-F2019–2026
350 XC-F2019–2025
350 XC-F Factory Edition2022–2026
350 XC-F Kailub Russell2021
450 SX-F2019–2026
450 SX-F Factory Edition2020–2026
450 XC-F2019–2026
450 XCF-W2026
500 EXC-F2019–2026
Suzuki
DR-Z400
E-Start Only
2000–2004
DR-Z400E2000–2007
DR-Z400S
E-Start Only
2000–2009, 2011–2019
DR-Z400S2020–2024
SV6501999–2008, 2017–2020, 2022–2023
SV650 ABS2017–2026
SV650S1999–2009

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
  • Free Ground Shipping (1 - 5 Days)
