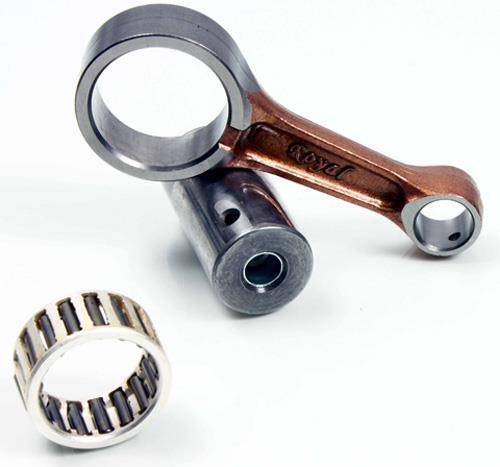

Bronco Connecting Rod Kit - AT-09193

AT-09193
Not For Sale

Description

A: 105.5mm
B: 19mm
C: 42mm
D: 18/13mm
E: 20mm
Pin Diameter/Length: 34mm x 65mm
Brass coated surface
Washer: Silver or zinc coating
Crank Pin: SCM-415 chromoly, hardness RC 58-62
Road SCM420 chromoly, double honing on both top and bottom bearing holes
Top/bottom bearing: SCM415 chromoly with silver coating for added heat resistance

Product Series

Application List

MODELYEARS
Honda
CRF450X2005–2009, 2012
TRX450ER Electric Start2006–2009, 2012
TRX450R2006–2009

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
  • Free Ground Shipping (1 - 5 Days)
