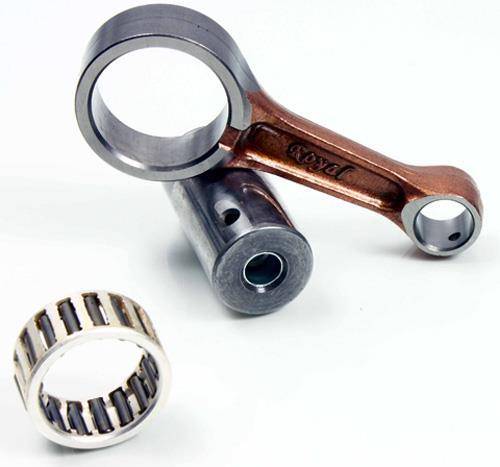

A: 107mm
B: 20mm
C: 43mm
D: 20mm
E: 22mm
Pin Diameter/Length: 35mm x 61.85mm
Brass coated surface
Washer: Silver or zinc coating
Crank Pin: SCM-415 chromoly, hardness RC 58-62
Road SCM420 chromoly, double honing on both top and bottom bearing holes
Top/bottom bearing: SCM415 chromoly with silver coating for added heat resistance
