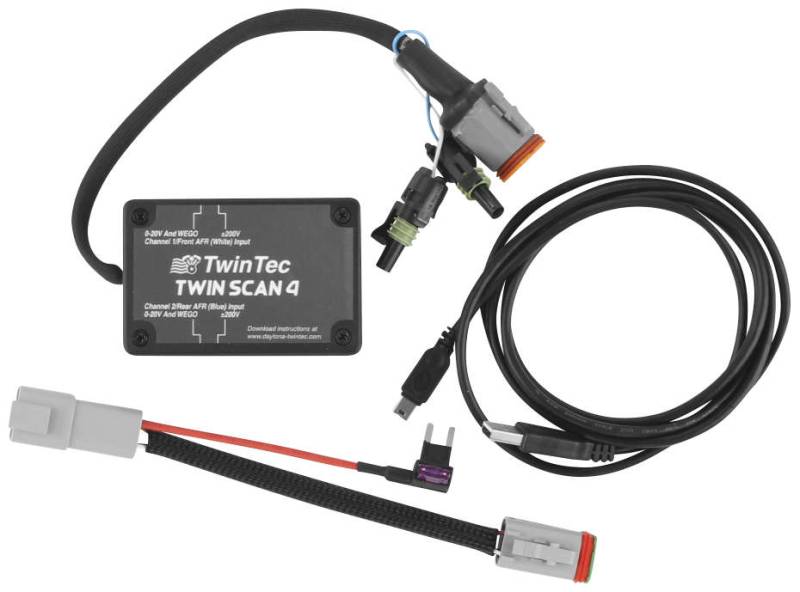

Daytona Twin Tec Twin Scan WEGO Upgrade Kit for any Twin Scan II, 3 or 4 - 15500

Communicates with ECM, TSSM and BCM to read, then clear diagnostic trouble codes
Activate ABS solenoids for proper brake bleeding and testing
Real-time display of engine sensors along with built-in data logging will store data for up to one hour
Data logging automatically triggered when a trouble code is set and shows the data before and after code is set
Programs and reads key fobs, programs PIN and disables security
Activates modules, lights, indicators fuel pump drain and electronic throttle sweep; tests different actuators, lights and indicators
Calibrate speedometer, remove new speedometer display of VinErr
Enables or disables settings in the ECM such as ACR (automatic compression release for performing engine compression testing), EITMS, cruise control, and active exhaust, reads and sets engine idle speed rpm
Enables or disables settings in the BCM for ignition switch, new radio installation, bank angle sensor for trike installs, program fog light function, ABS installation, and enable service state
Latest software will include the latest firmware for easy remote updating of the Twin Scan 4
Includes two analog inputs with 0-20V or200V range as well as two channel oscilloscope capability for waveform display
Analog inputs can also be used for air/ flow ratio (AFR)
Easy to navigate software
Requires use of a PC with Windows 7, Windows 8 or Windows 10 for display
WEGO IIID dual channel wide-band exhaust gas oxygen sensor interface upgrade kit
PART #1022-0224 will log engine data along with the actual air/ fuel ratio (AFR); logged AFR data can be analyzed and displayed.
Use probe kit PART #3807-0189 to use scopemeter function; includes two insulation-piercing probes and 12V power adapters
Use PART #1022-0008 for replacement Bosch O2 sensor (sold each)
Made in the U.S.A.
NOTE: Not all features are available for all models. Most features are available for almost all models through 2016. For example, the 2017 and newer models have eliminated the adjustability of idle rpm and speedometer calibration for everyone at
