Wiseco Top End Kit - 0.50mm Oversize to 53.50mm, 9.4:1 Compression - PK1229

SPECIFICATIONS
Displacement: 101cc
Bore - Standard: 53.00mm
Bore - Actual: 53.50mm
Bore - Oversize: 0.50mm
Stroke: 45.00mm
Compression Ratio - Actual: 9.4:1
Note: Cylinder boring required
ITEM CONTENTS
2106XE - 53.50 mm Ring Set
4666M05350 - Honda XR100 81-03/CRF100F 04-13 9.4:1
CW14 - ROUND WIRE PIN LOCKS 14MM (PAIR)
S593 - PistonPin 14mm x 1.732in. NonChromed SW
W5749 - TopEnd Gskt Kit Honda XR/CRF100F 92-12

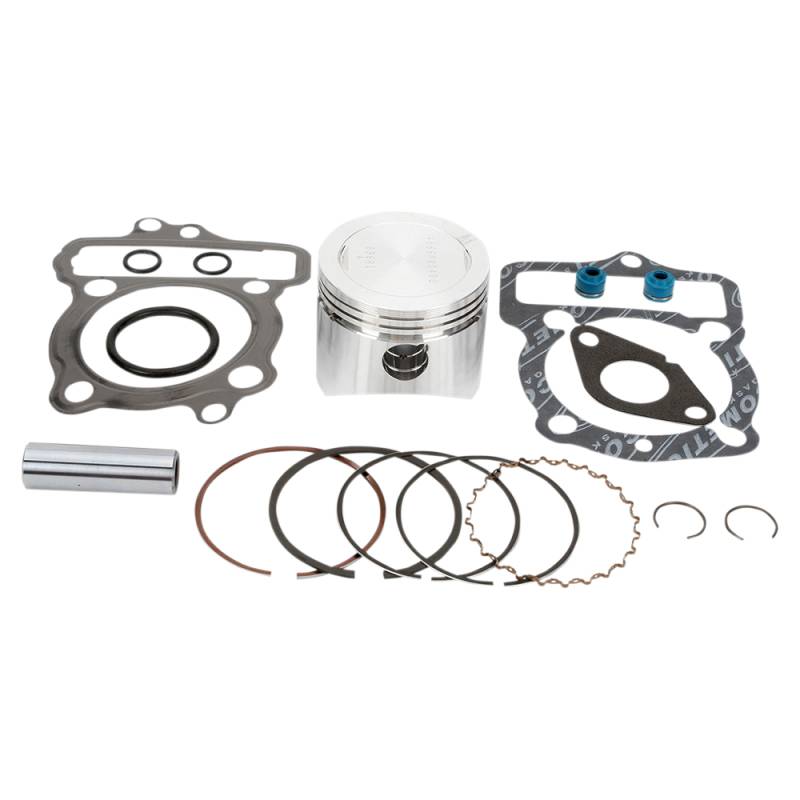

Contains all the necessary components for overboring or rebuilding your top end
Feature forged pistons, rings, wrist pins, circlips and top end gasket set

Specifications

Bore - Oversize	+0,50 mm / +0.50 mm
Skirt Coating	Non-Coated
Bore Size	53.50 mm
Piston Diameter	53.47 mm
Product Name	Rebuild Kit
Displacement	99.2 cc
Engine Type	4-Stroke
Piston Material	4032 Aluminum Alloy
Compression Ratio	9.4:1
Model	Forged Series
Stroke Length	45.00 mm
Type	Top End
