SPECIFICATIONS
Displacement: 277cc
Bore - Standard: 73.00mm
Bore - Actual: 77.00mm
Bore - Oversize: 4.00mm
Stroke: 59.5mm
Compression Ratio - Actual: 10.5:1
Note: Cylinder boring required

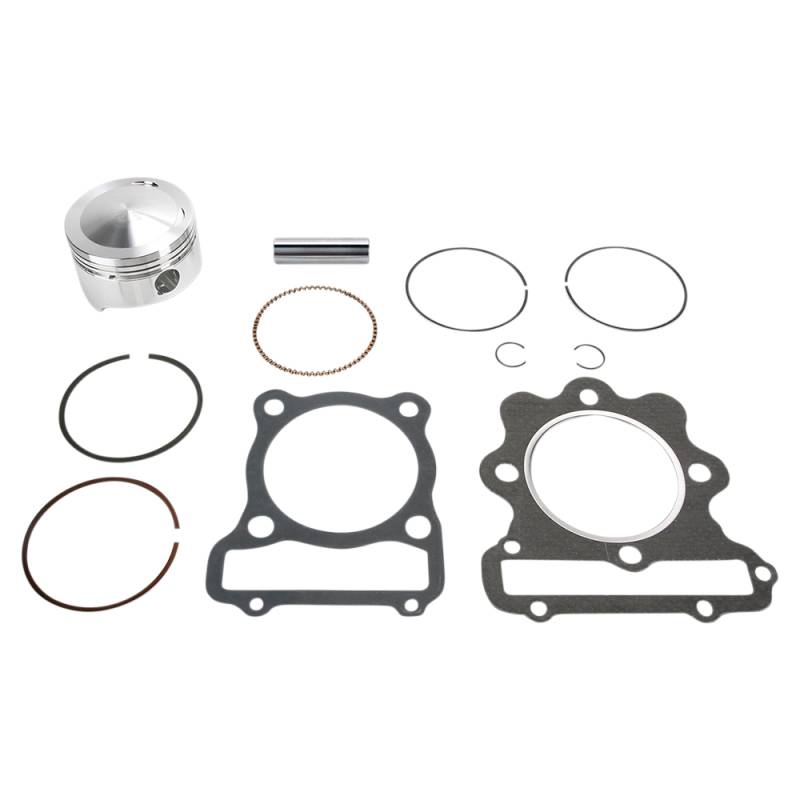

ITEM CONTENTS
3032XC - 77.00 mm Ring Set
4466M07700 - Honda XR250 86-04 10.5:1 CR 3032XC
CW17 - ROUND WIRE PIN LOCKS 17MM (PAIR)
S523 - PistonPin 17mm x 2.429in. NonChromed TW
W5425 - TopEnd Gasket Kit Honda XRL250 & XR250
Contains all the necessary components for overboring or rebuilding your top end
Feature forged pistons, rings, wrist pins, circlips and top end gasket set
Specifications| Compression Ratio | 10.5:1 |
|---|
| Displacement | 250 cc |
|---|
| Model | Forged Series |
|---|
| Type | Top End |
|---|
| Bore Size | 77.00 mm |
|---|
| Bore - Oversize | +4,00 mm / +4.00 mm |
|---|
| Skirt Coating | Non-Coated |
|---|
| Piston Diameter | 76.95 mm |
|---|
| Product Name | Rebuild Kit |
|---|
| Engine Type | 4-Stroke |
|---|
| Piston Material | 2618 Aluminum Alloy |
|---|
| Stroke Length | 59.50 mm |
|---|
