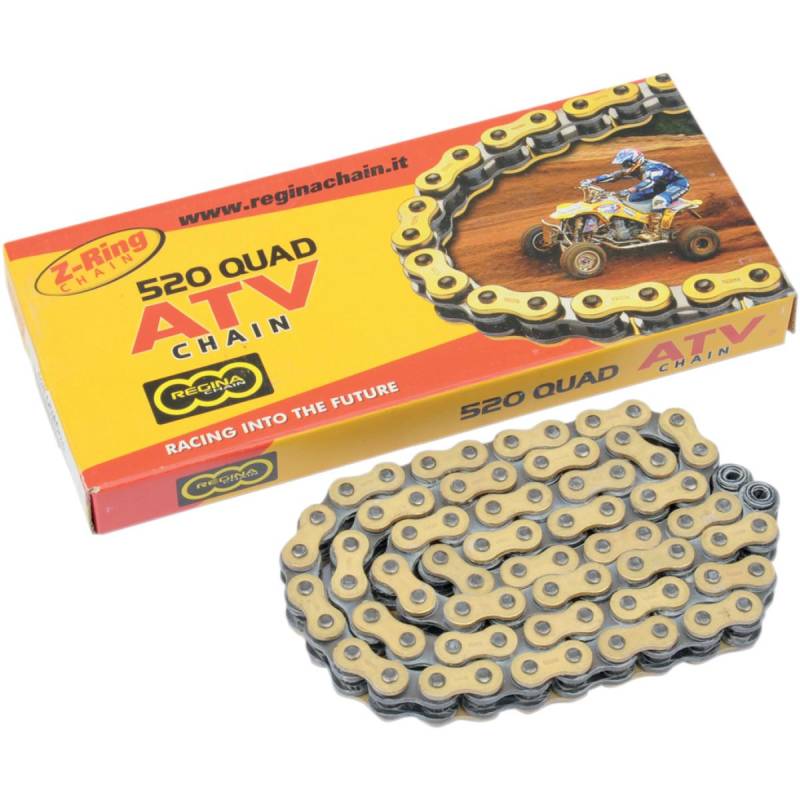

Regina Chain 520 QUAD Series Chain - 96 Links - Gold - 135QUAD/004

The ultimate ATV chain, developed to withstand the severe stresses of ATV riding, yet lightweight with maximum performance QUAD chains feature the patented Z44 sealing rings, which greatly improve performance and wear life, making previous X-ring and Z-ring chains obsolete 50% reduction in friction compared to traditional O-rings Constant lubrication from special high-temperature grease in the critical pin/bushing area provides long life High-carbon alloy pins to minimize wear and increased roller thickness to prolong durability Thicker outer plates and quad-riveting for greater tensile strength All parts are shot-peened for maximum fatigue resistance, and all chains are pre-loaded for superior performance and minimal adjustment Suitable for ATVs up to 900cc 8,093 ft./lbs. tensile strength Gold color

Specifications

Chain Size	520
Master Link Connector Type	Clip
Product Name	Drive Chain
Tensile Strength	36.5 kN / 8205 lb
Color/Finish	Gold
Maximum Engine Displacement (Offroad)	500 cc
Number of Links	96
Chain Type	520 QUAD
Model	Quad Series
Seal Type	Z44-Ring
Weight	1,76 kg/100 Links
