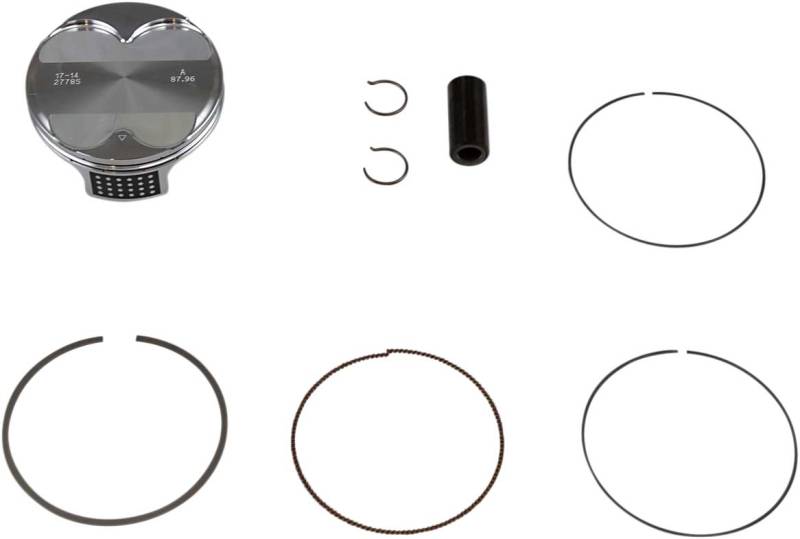

Vertex Forged Replica Piston Kit - Standard Bore 87.96mm, 14.0:1 Compression - 24098A

24098A
Was: $293.95
Sale: $229.46
Save: 22%
Save: $64.49

Qty:
Free Ground Shipping (1 - 5 Days)

Description

All pistons are heat treated with a T-5 hardening and tempering cycle All piston skirts are coated with a high-tech Molybdenum Disulphite coating for faster break-in time and increased piston life Cast piston kits are gravity cast aluminum alloy (not forged) with 18% silicone content, which produces an extremely light but very strong piston Forged pistons are forged from 2618 aluminum for superior strength and durability Forged High Compression pistons improve power and torque across entire rpm range Big Bore pistons increase engines displacement, torque, and peak horsepower Forged Replica pistons are forged OE replacements Replica pistons and all rings are OEM replacements
Specifications
Piston Diameter87.96 mm
Piston MaterialForged 2618 Aluminum
Compression Ratio14.0:1
Product NamePiston Kit
Cylinder Diameter88.00 mm
Displacement350 cc
StyleForged Replica
Engine Type4-Stroke
Skirt CoatingMolybdenum Disulphite

Product Series

Application List

YearsMakeModelApplicationNotes
2016 - 2022KTM350 SX-F
2021 - 2023Gas GasEX 350F
2017 - 2022HusqvarnaFX350
2022 - 2023Gas GasMC 350F
2020 - 2022KTM350 XCF-W
2020 - 2022HusqvarnaFE350
2016 - 2022HusqvarnaFC350
2016 - 2022KTM350 XC-F
2020 - 2023HusqvarnaFE350S
2020 - 2023KTM350 EXC-F

Details

  • 24098A
  • 24098A
  • Vertex
  • Available
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
  • Free Ground Shipping (1 - 5 Days)
