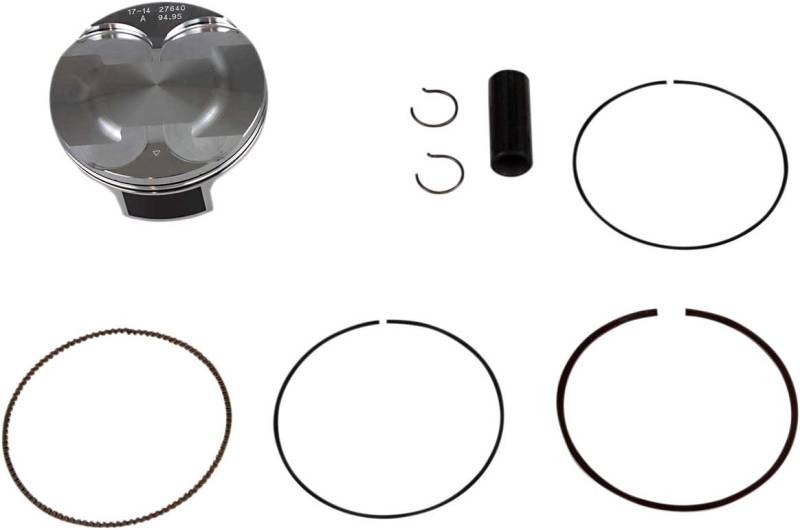

Vertex Forged Replica Piston Kit - Standard Bore 94.96mm, 12.6:1 Compression - 24099B

24099B
Was: $302.95
Sale: $272.66
Save: 10%
Save: $30.29

Qty:
Free Ground Shipping (1 - 5 Days)

Description

All pistons are heat treated with a T-5 hardening and tempering cycle All piston skirts are coated with a high-tech Molybdenum Disulphite coating for faster break-in time and increased piston life Cast piston kits are gravity cast aluminum alloy (not forged) with 18% silicone content, which produces an extremely light but very strong piston Forged pistons are forged from 2618 aluminum for superior strength and durability Forged High Compression pistons improve power and torque across entire rpm range Big Bore pistons increase engines displacement, torque, and peak horsepower Forged Replica pistons are forged OE replacements Replica pistons and all rings are OEM replacements
Specifications
Cylinder Diameter95.00 mm
StyleForged Replica
Displacement450 cc
Compression Ratio12.6:1
Engine Type4-Stroke
Product NamePiston Kit
Skirt CoatingMolybdenum Disulphite
Piston Diameter94.96 mm
Piston MaterialForged 2618 Aluminum

Product Series

Application List

YearsMakeModelApplicationNotes
2021 - 2023Gas GasEX 450F
2016 - 2020KTM450 SX-F Factory Edition
2017 - 2022HusqvarnaFX450
2017 - 2022HusqvarnaFS450
2016 - 2022HusqvarnaFC450
2021 - 2023Gas GasMC 450F
2021 - 2022KTM450 SMR
2016 - 2022KTM450 SX-F
2016 - 2022KTM450 XC-F
