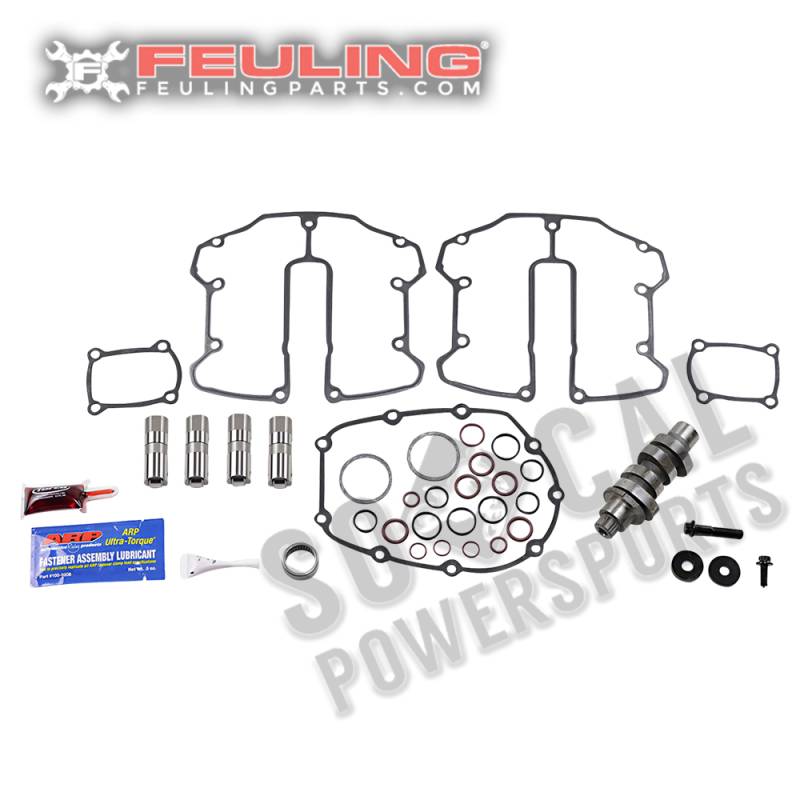

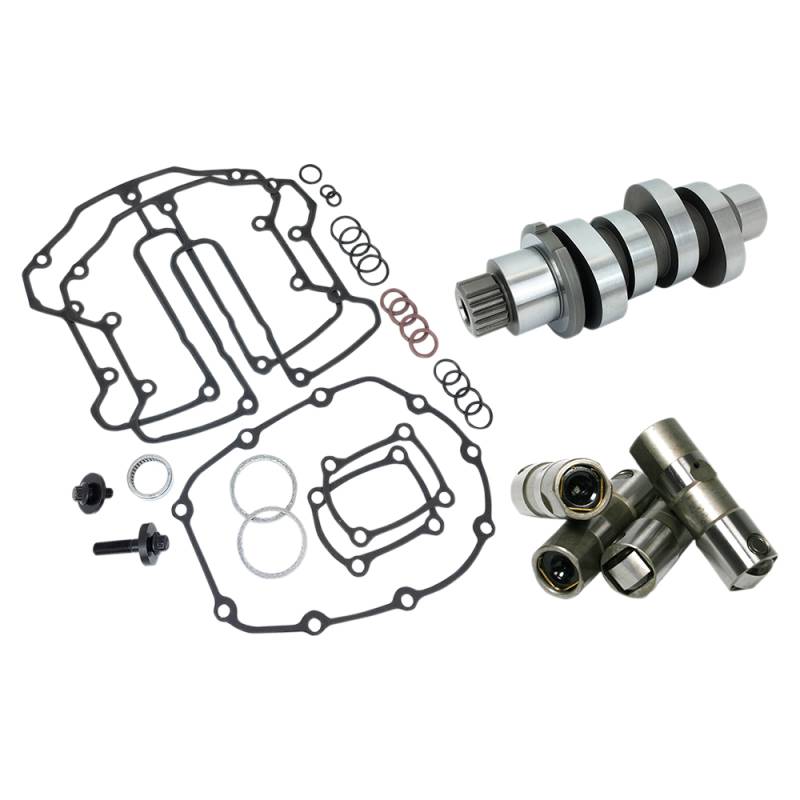

Feuling HP+ Complete 465 Chain Drive Cam Kit - 1443

Include camshafts, lifters and a cam installation kit that includes the cam bearing, cam/ crank hardware Kit also includes gasket/O-ring kit that allows installation of Feuling Heavy-Duty HP+ .0165in. wall one-piece pushrodsd or factory one-piece pushrods HP+ kits include HP+ lifters, Race Series kit includes Race Series lifters NOTE: Due to the unstable nature of this 4-valve engine design with one rocker arm activating two valve springs, Feuling highly recommends running one-piece pushrods over quick-install adjustable pushrods to maintain maximum cam/ valve lift and reduce valvetrain harmonics and associated hydraulic lifter issues. NOTE: Feuling fastener kit PART #2401-0994 also highly recommended to help prevent cylinder head cracking; kit replaces the rocker shaft bolts with studs and nuts to help reduce the stress of the rocker shaft standoffs.

Specifications

Intake Close	23°
Exhaust Lobe Centerline	112°
Intake Lobe Centerline	99.5°
Model	HP+®
Exhaust Lift	0.465"
Intake Lift	0.445"
Product Name	Camshaft Kit
Exhaust Duration	236°
Exhaust Lift at TDC	0.100"
Exhaust Open	50°
Intake Duration	207°
Application	Exhaust / Intake
Grind	465 Series
Intake Open	4°
Type	Chain
Exhaust Close	6°
Intake Lift at TDC	0.100"
