Displacement: 1700cc
Bore - Standard: 3.750in
Bore - Actual:3.885in
Bore - Oversize: .125in
Stroke: 4.375in
Compression Ratio - Actual: 9:1
Dome Type:Reverse
Engine Type: 103ci
Dome Volume:-11.5cc
Valve Pocket Depth - Intake: -.205in
Valve Pocket Dia - Intake: 2.250in
Valve Pocket Depth - Exhaust:-.205in
Valve Pocket Dia - Exhaust: 2.250in
Coating: ArmorX
Skirt Coating: ArmorFit
Note: Cylinder boring required
Note: Recalibration req.

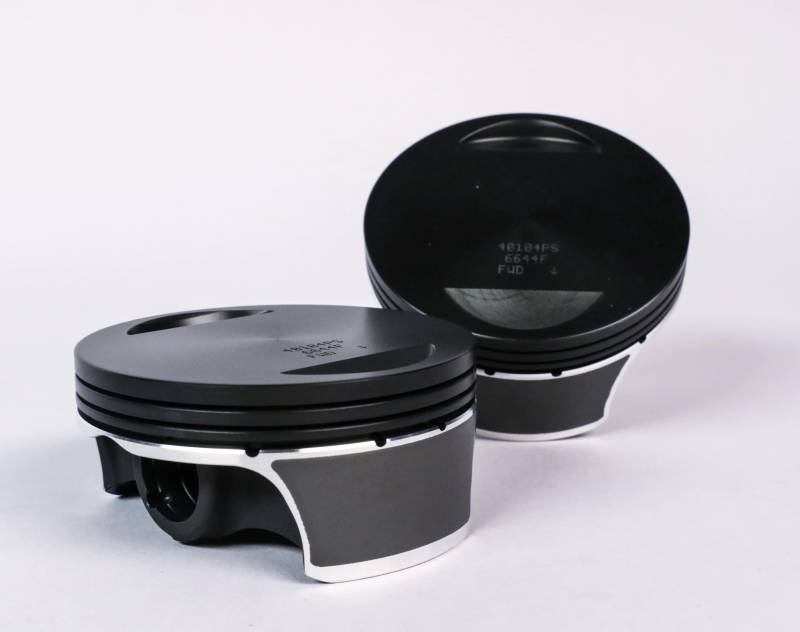

Features ArmorX piston coating for superior protection in extreme conditions and reduced wear
ArmorFit skirt coating auto-adjusts to the cylinder wall so there's no need to measure clearance; provides smooth, quiet, trouble-free operation
Dome design for improved flame travel to maximize air/ fuel burn efficiency
High compression for added power
Superfinish piston pin reduces friction and improves scuff resistance
Enhanced pin oiling for improved lubrication and reduced friction
Specifications| Engine Type | 4-Stroke |
|---|
| Stroke Length | 4.375" |
|---|
| Compression Ratio | 9.0:1 |
|---|
| Bore - Oversize | 0.125" / 0,125" |
|---|
| Bore Size | 3.885" |
|---|
| Displacement | 1700 cc |
|---|
| Piston Head Shape | Dished, -11.5 cc Volume |
|---|
| Skirt Coating | ArmorGlide™ |
|---|
| Piston Material | Forged 2618 Aluminum |
|---|
| Style | High Performance |
|---|
| Model | Forged Series |
|---|
| Product Name | Piston Kit |
|---|
