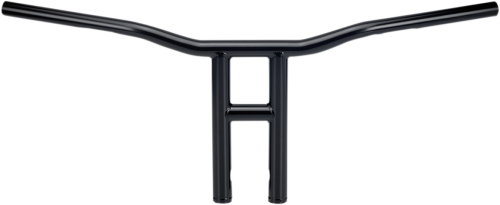

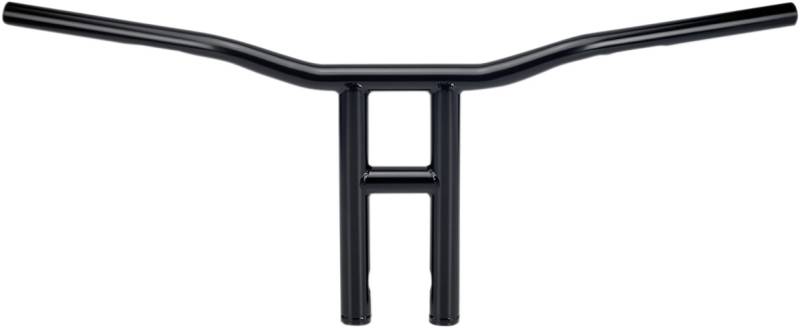

Biltwell Inc. 1in. Tyson XL 12in. Handlebar - Black Electroplate - TX-SLT-12-BK

End Rise 12in.
Width 30in.
Center Width 3.5in.
Pullback 2.75in.
Vertical uprights are 1-1/4in. OD.
Manufactured from 1 OD x .120 wall seamless 4130 chromoly tubing
All bends are created with internal mandrels on a CNC bender to reduce flat spots in the bends
All welded joints are precision-mitered and TIG-welded
Available in chrome or black electroplate finishes and either undimpled for aftermarket hand controls/ custom applications or dimpled for stock OEM switches and levers
All T-Bar style bars have 31/2 on-center mounting points
NOTE: Not notched for TBW applications.

Specifications

Finish	Gloss
Color/Finish	Electroplate / Gloss / Black
Type/Bend	Tyson XL / T-Bar
End Rise	12"
Center Width	3-1/2"
Handlebar Diameter	1"
Style	Standard
Features	Smooth, Unknurled
Material	Chromoly
Product Name	Handlebar
Base Color	Black
Pullback/Sweep	2-3/4"
Width	30"
