KFI Products Winch Mount - 101515

(0) Reviews: Write first review
101515
Pricing: $56.95

Qty:

Description

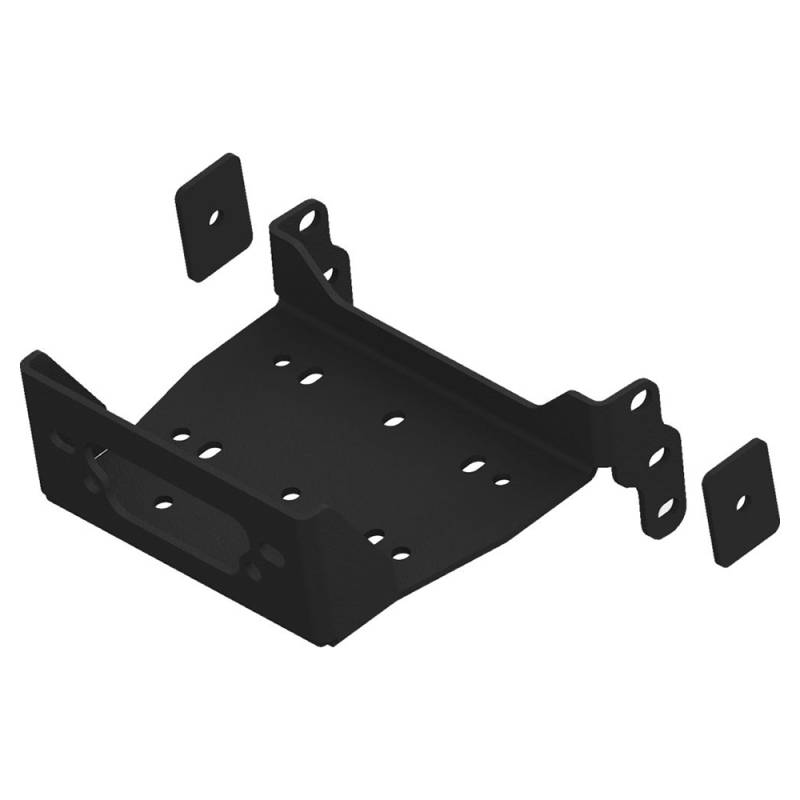

KFI Winch Mount
  • Contains: One Winch Mount
  • MADE IN THE USA
    * Actual Contents May Vary from Photo
    * Unless otherwise specified, components are proprietary to the KFI plow system
    * May be required for certain KFI plow installations.

    Constructed of 3/16in. steel.
    Powder coated black for supreme durability.
    Mounting hardware included.
    Roller fairlead and winch not included.

    Mount designed to work with the following winches:
  • KFI on VIKING / Viking VI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / SE25 / SE35 / SE45-R2 / AS-50 / AS-50w (Will NOT work with U45w-R2 or SE45w-R2 WIDE winches)
  • KFI on WOLVERINE: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35 / AS-50 / AS-50w (Will NOT work with U45-R2, U45w-R2, SE45-R2 or SE45w-R2 winches)
  • KFI on WOLVERINE X2 and X4: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2 / AS-50 / AS-50w
  • WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
  • WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
  • WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
  • WARN:RT40 / XT40 (Requires the drilling of two holes)
  • WARN:Vantage 2000-3000lb
  • WARN:Vantage 4000lb (Requires the drilling of two holes)
  • WARN:ProVantage 2500-3500lbs
  • WARN:ProVantage 4500lbs (Requires the drilling of two holes)
  • RAMSEY: ATV2500 / ATV3000
  • SUPERWINCH: Terra25 / Terra35 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
  • SUPERWINCH: Terra 45 (Requires drilling of two holes)
  • MILE MARKER:PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500 (2-hole mounted winches will require the drilling of one hole)
  • CYCLE COUNTRY:Work Power 1500 and 2500 / Powermax 2500 and 3500
  • KEEPER CORP. TRAKKER:KT2500 / KT3000 / KT2500C / KT3000C
  • KEEPER CORP. TRAKKER:KT4000 / KT4000C (Requires the drilling of two holes)
  • KEEPER CORP. TRAKKER:KT2000 (Requires the drilling of one holes)
            ** Requires roller fairlead with a 4.875in. bolt pattern; available if needed #ATV-RF
  • SMITTYBILT:XRC 2.0 (Requires drilling of one holes)
            ** Requires roller fairlead with a 4.875in. bolt pattern; available if needed #ATV-RF.
            ** Listed models come with incorrect ATV roller fairleads.
  • SMITTYBILT:XRC 3.0 / XRC 4.0
  • XGEAR: X3000 / X4000
            ** 4-Hole Standard (3.00in. x 4.875in. bolt pattern)
  • VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
            ** All with 3.00in. x 4.875in. bolt pattern mount-up.
            ** All with 3.00in. x 6.600in. bolt pattern mount-up will require the drilling of two holes.
  • Traveller:1078088 / 1078302
            ** Requires roller fairlead with a 4.875in. bolt pattern; available if needed #ATV-RF
  • Possibly many others with the below standard mounting patterns
            ** 4-Hole (3.00in. x 4.875in. bolt pattern with rollers that are 4.875in. bolt pattern)
            ** 4-Hole WIDE that will require the drilling of two holes (3.00in. x 6.60in. bolt pattern with rollers that are 6.600in. or 6.000in. bolt pattern)
            ** 2-Hole that will require the drilling of one hole (3.10in. with rollers that are 4.875in. bolt pattern)
    Specifications
    Compatibility3.0ce / AS-25 / Provantage 3500 / Terra25 / Vantage 4000 / Venom 2500 / 3.0s / Axon 35-s / PE2000 / PE3000 / PE3500 / Powermax 2500 / VRX-25 / X3000 / 1078088 / A2000 / AM-35 / KT3000C / LT3000 / PE2.5 / PE2500 / RT/XT15 / U45w-R2 / UT3000 / Venom 4500 / Venom 5000 / VRX-35 / XRC 4.0 / 1.5ci / 2.5ce / 3.0ci / A2500 / AM-25 / AS-50w / Axon 45RC / KT2000 / LT2000 / LT2500 / Powermax 3500 / RT/XT30 / Terra 3500 SR / Terra 4500 SR / Venom 4000 / AS-50 / LT4000ATV / LT4000SR / Provantage 4500 / SE45-R2 / U2500 / U45-R2 / Work Power 1500 / 2.5ci / A2500-R2 / A3500 / AS-35 / Axon 35 / KFI ST17 / KT2500C / LT4000UTV / PE3.5 / Provantage 2500 / RT/XT25 / SE25 / Vantage 3000 / Venom 3000 / XRC 2.0 / 1078302 / A3000 / ATV2500 / KT3000 / KT4000c / Terra 2500 SR / Terra35 / Vantage 2000 / Venom 3500 / VRX-45 / Work Power 2500 / X4000 / ATV3000 / KT2500 / KT4000 / RT/XT40 / SE35 / Terra45 / Venom 2000 / VMX2.5 / VRX-25S / VRX-35S / VRX-45S / XRC 3.0
    Product NameMounting Kit
    Color/FinishBlack / Powder-Coated
    TypeWinch
    MaterialSteel

    • Product Series

    Application List

    YearsMakeModelApplicationNotes
    2021 - 2021YamahaYXE10 Wolverine RMAX2No mount required, OEM integrated Mount
    2016 - 2016YamahaYXE70 Wolverine R-Spec
    2015 - 2017YamahaYXC700 Viking VI
    2015 - 2025YamahaYXC700 Viking VI EPS
    2015 - 2017YamahaYXC700 Viking VI EPS SE
    2019 - 2019YamahaYXE85 Wolverine X2
    2016 - 2025YamahaYXC700 Viking VI EPS Ranch Edition
    2021 - 2023YamahaYXE10 Wolverine RMAX2 Limited EditionNo mount required, OEM integrated Mount
    2016 - 2018YamahaYXE70 Wolverine
    2020 - 2023YamahaYXE85 Wolverine X2 R-SpecNo mount required, OEM integrated Mount
    2022 - 2023YamahaYXE10 Wolverine RMAX2 R-SpecNo mount required, OEM integrated Mount
    2021 - 2023YamahaYXE10 Wolverine RMAX2 XT-RNo mount required, OEM integrated Mount
    2017 - 2017YamahaYXE70 Wolverine EPS
    2019 - 2019YamahaYXE85 Wolverine X2 R-Spec
    2022 - 2023YamahaYXF10 Wolverine RMAX4 R-SpecNo mount required, OEM integrated Mount
    2022 - 2023YamahaYXE10 Wolverine RMAX2 SportNo mount required, OEM integrated Mount
    2020 - 2023YamahaYXF85 Wolverine X4 XT-RNo mount required, OEM integrated Mount
    2019 - 2019YamahaYXE85 Wolverine X2 R-Spec SE
    2016 - 2018YamahaYXE70 Wolverine R-Spec EPS
    2020 - 2020YamahaYXE85 Wolverine X2No mount required, OEM integrated Mount
    2016 - 2017YamahaYXE70 Wolverine R-Spec EPS SE
    2021 - 2021YamahaYXF10 Wolverine RMAX4No mount required, OEM integrated Mount
    2021 - 2023YamahaYXF10 Wolverine RMAX4 XT-RNo mount required, OEM integrated Mount
    2018 - 2024YamahaYXM700 Viking EPS Ranch Edition
    2014 - 2019YamahaYXM700 Viking EPS SE
    2021 - 2023YamahaYXF10 Wolverine RMAX4 Limited EditionNo mount required, OEM integrated Mount
    2020 - 2022YamahaYXF85 Wolverine X4No mount required, OEM integrated Mount
    2018 - 2019YamahaYXF85 Wolverine X4 SE
    2020 - 2023YamahaYXE85 Wolverine X2 XT-RNo mount required, OEM integrated Mount
    2014 - 2015YamahaYXM700 Viking
    2023 - 2023YamahaYXF85 Wolverine X4 R-SpecNo mount required, OEM integrated Mount
    2018 - 2019YamahaYXF85 Wolverine X4
    2014 - 2024YamahaYXM700 Viking EPS
    2014 - 2023YamahaYXM700 Viking EPS with Suntop
    2018 - 2020YamahaYXM700 Viking with Suntop

    Details

    • 101515
    • 101515
    • 748252654892
    • KFI Products
    • Available
    • New

    Categories

    Product Series

    Shipping Information

    • Item Requires Shipping
    • 5.0 lbs.
    • W6.0000” x H10.0000” x L4.0000”
