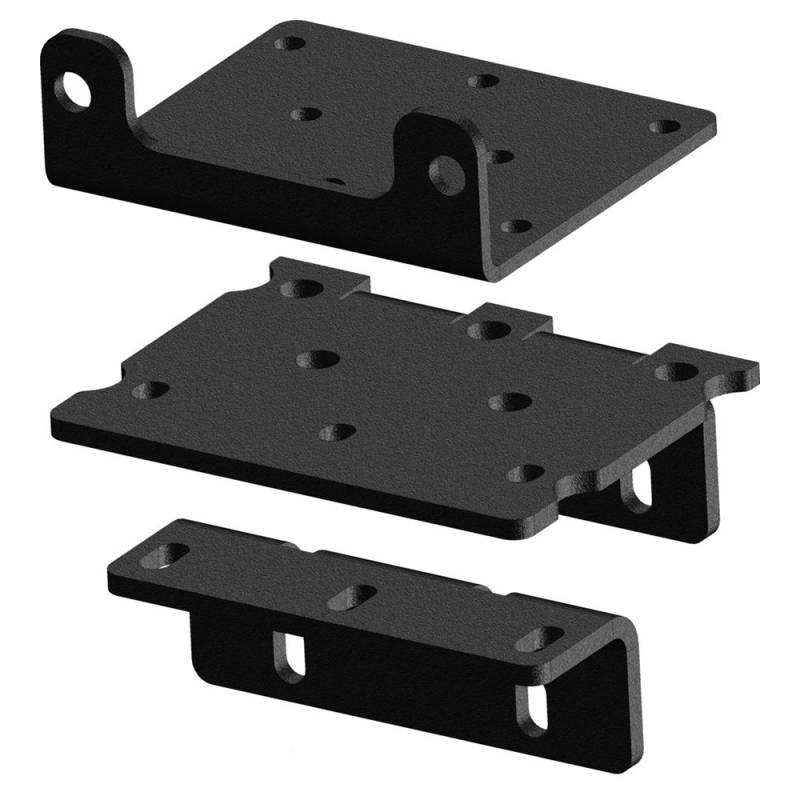

KFI Winch Mount
Contains: One Winch Mount
MADE IN THE USA
* Actual Contents May Vary from Photo
* Unless otherwise specified, components are proprietary to the KFI plow system
* May be required for certain KFI plow installations.
Constructed of 1/4in. steel.
Powder coated black for supreme durability.
Mounting hardware included.
Roller fairlead and winch not included.
Mount designed to work with the following winches:
KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
KFI: AS-50 / AS-50w
WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
** Requires Wide fairlead bracket #101715
WARN:VRX 45 / VRX 45-S
** Requires Wide fairlead bracket #100695.
WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
WARN:RT40 / XT40
WARN:Vantage 2000-3000lbs / Provantage 2500-3500lbs
WARN: Vantage 4000lbs / Provantage 4500lbs (Will use WIDE fairlead that comes with your winch.)
RAMSEY: ATV2500 / ATV3000
SUPERWINCH: Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
MILE MARKER:PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
CYCLE COUNTRY:Work Power 1500 and 2500 / Powermax 2500 and 3500
KEEPER CORP. TRAKKER:KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
KEEPER CORP. TRAKKER:KT2000
** Requires roller fairlead with a 4.875in. bolt pattern; available if needed #ATV-RF.
SMITTYBILT:XRC 2.0
SMITTYBILT:XRC 3.0 / XRC 4.0
XGEAR: X3000 / X4000
VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
** All with 3.00in. x 4.875in. Bolt Pattern mount-up
** All with 3.00in. x 6.600in. Bolt Pattern mount-up
Traveller:1078311
Traveller:1078088 / 1078302
** Requires roller fairlead with a 4.875in. bolt pattern; available if needed #ATV-RF
Possibly many others with the below standard mounting patterns
** 4-Hole (3.00in. x 4.875in. bolt pattern with rollers that are 4.875in. bolt pattern)
** 4-Hole WIDE (3.00in. x 6.60in. bolt pattern with rollers that are 6.600in. or 6.000in. bolt pattern)
** 2-Hole (3.10in. with rollers that are 4.875in. bolt pattern)
QUADBOSS: RP25 / RP35
